API Flange, API 6A Flange Manufacturers in India
India's Most Experienced Manufacturers,Suppliers and Exporter of API Flanges, API 6A Flange, API Weld neck Flanges, API Slip on Flanges, API Socket weld Flanges, API Blind Flanges, API 6A Type 6B 5000PSI Blind / Welding Neck Flange, API Threaded Flange, API 6A Type 6BX 2000PSI Blind Flange in India & UK
API Flanges
- API Flanges Dimensions
- API 6A Type 6BX 15000PSI Blind / Welding Neck Flange
- API 6A Type 6B 2000PSI Blind / Welding Neck Flange
- API 6A Type 6BX 2000PSI Blind Flange
- API 6A Type 6B 3000PSI Blind / Welding Neck Flange
- API 6A Type 6B 5000PSI Blind / Welding Neck Flange
- API 6A Type 6BX 10000PSI Blind / Welding Neck Flange
- Leading manufacturer of API Flanges

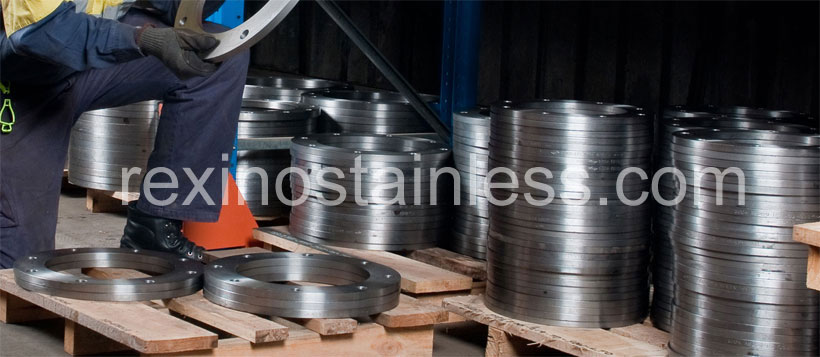

- Our Live Stock of API Flanges
- API Flanges Application
Specifications :-
- Type::Welding neck Flanges, Blind Flanges with Ring Joint Connetction, slip on flange, blind flange, welded neck flange, threaded flange, lapped joint flange (loose flange), socket welded flange, Orifice Flanges, long weld neck flange and special flange
- Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
- Standard: API 6A
- Size: 1-13/16" to 21-1/4"
- Pressure: 2000psi, 3000psi, 5000psi, 10000psi, 15000psi, 20000psi
- Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
- Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
- E-catalogue: Available , please visit catalogue of flange
- Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
Types Of API Flanges
API Flange, API 6A Flange Dimensions
| Flange Size | Working Pressure (PSI) | Outside Diameter | Number of Bolt Holes | Diameter of Bolt Holes | Length of Bolts | API Ring Gasket |
|---|---|---|---|---|---|---|
| 1-13/16" | 10,000 | 7-3/8" | 8 | 3/4" | 5-1/4" | BX-151 |
| 1-13/16" | 15,000 | 8-3/16" | 8 | 7/8" | 6" | BX-151 |
| 1-13/16" | 20,000 | 10-1/8" | 8 | 1" | 7-3/4" | BX-151 |
| 2-1/16" | 2,000 | 6-1/2" | 8 | 5/8" | 5/8" | R-23 |
| 2-1/16" | 3,000/5,000 | 8-1/2" | 8 | 7/8" | 7/8" | R-24 |
| 2-1/16" | 10,000 | 7-7/8" | 8 | 3/4" | 3/4" | BX-152 |
| 2-1/16" | 15,000 | 8-3/4" | 8 | 7/8" | 7/8" | BX-152 |
| 2-1/16" | 20,000 | 11-5/16" | 8 | 1-1/8" | 1-1/8" | BX-152 |
| 2-9/16" | 2,000 | 7-1/2" | 8 | 3/4" | 5-1/4" | R-26 |
| 2-9/16" | 3,000/5,000 | 9-5/8" | 8 | 1" | 7" | R-27 |
| 2-9/16" | 10,000 | 9-1/8" | 8 | 7/8" | 6-1/4" | BX-153 |
| 2-9/16" | 15,000 | 10" | 8 | 1" | 7" | BX-153 |
| 2-9/16" | 20,000 | 12-13/16" | 8 | 1-1/4" | 9-1/2" | BX-153 |
| 3-1/8" | 2,000 | 8-1/4" | 8 | 3/4" | 5-1/2" | R-31 |
| 3-1/8" | 3,000 | 9-1/2" | 8 | 7/8" | 6-1/4" | R-31 |
| 3-1/8" | 5,000 | 10-1/2" | 8 | 1-1/8" | 7-3/4" | R-35 |
| 3-1/16" | 10,000 | 10-5/8" | 8 | 1" | 7-1/4" | BX-154 |
| 3-1/16" | 15,000 | 11-5/16" | 8 | 1-1/8" | 8" | BX-154 |
| 3-1/16" | 20,000 | 14-1/16" | 8 | 1-3/8" | 10-3/4" | BX-154 |
| 4-1/16" | 2,000 | 10-3/4" | 8 | 7/8" | 6-1/4" | R-37 |
| 4-1/16" | 3,000 | 11-1/2" | 8 | 1-1/8" | 7-1/2" | R-37 |
| 4-1/16" | 5,000 | 12-1/4" | 8 | 1-1/8" | 8-3/8" | BX-155 |
| 4-1/16" | 20,000 | 17-9/16" | 8 | 1-3/4" | 12-3/4" | BX-155 |
| 5-1/8" | 5,000 | 14-3/4" | 8 | 1-1/2" | 10-3/4" | R-44 |
| 7-1/16" | 2,000 | 14" | 12 | 1" | 7-1/2" | R-45 |
| 7-1/16" | 3,000 | 15" | 12 | 1-1/8" | 8-1/2" | R-45 |
| 7-1/16" | 5,000 | 15-1/2" | 12 | 1-3/8" | 11-1/4" | R-46 |
| 7-1/16" | 10,000 | 18-7/8" | 12 | 1-1/2" | 11-3/4" | BX-156 |
| 7-1/16" | 15,000 | 19-7/8" | 16 | 1-1/2" | 13" | BX-156 |
| 7-1/16" | 20,000 | 24-13/16" | 16 | 2" | 17-3/4" | BX-156 |
| 9" | 2,000 | 16-1/2" | 12 | 1-1/8" | 8-1/2" | R-49 |
| 9" | 3,000 | 18-1/2" | 12 | 1-3/8" | 9-1/2" | R-49 |
| 9" | 5,000" | 19" | 12 | 1-5/8" | 12-1/2" | R-50 |
| 9" | 10,000 | 21-3/4" | 16 | 1-1/2" | 13-1/4" | BX-157 |
| 9" | 15,000 | 25-1/2" | 16 | 1-7/8" | 16" | BX-157 |
| 11" | 2,000 | 20" | 16 | 1-1/4" | 9-1/4" | R-53 |
| 11" | 3,000 | 21-1/2" | 16 | 1-3/8" | 10" | R-53 |
| 11" | 5,000 | 23" | 12 | 1-7/8" | 14-1/4" | R-54 |
| 11" | 10,000 | 25-3/4" | 16 | 1-3/4" | 15-3/8" | BX-158 |
| 11" | 15,000 | 32" | 20 | 2" | 19-1/2" | BX-158 |
| 13-5/8" | 2,000 | 22" | 20 | 1-1/4" | 9-1/2" | R-57 |
| 13-5/8" | 3,000 | 24" | 20 | 1-3/8" | 10-3/4" | R-57 |
| 13-5/8" | 5,000 | 26-1/2" | 16 | 1-5/8" | 12-3/4" | BX-160 |
| 13-5/8" | 10,000 | 30-1/4" | 20 | 1-7/8" | 17-3/4" | BX-159 |
| 13-5/8" | 15,000 | 34-7/8" | 20 | 2-1/4" | 21" | BX-159 |
| 16-3/4" | 2,000 | 27" | 20 | 1-1/2" | 10-3/4" | R-65 |
| 16-3/4" | 3,000 | 27-3/4" | 20 | 1-5/8" | 12-1/4" | R-66 |
| 16-3/4" | 5,000 | 30-3/8" | 16 | 1-78" | 14-3/4" | BX-162 |
| 16-3/4" | 10,000 | 34-5/16" | 24 | 1-7/8" | 17-3/4" | BX-162 |
| 18-3/4" | 5,000 | 35-5/8" | 20 | 2" | 18" | BX-163 |
| 16-3/4" | 10,000 | 40-15/16" | 24 | 2-1/4" | 23" | BX-164 |
| 20-3/4" | 3,000 | 33-3/4" | 20 | 2" | 15-1/4" | R-74 |
| 21-1/4" | 2,000 | 32" | 24 | 1-5/8" | 12-1/2" | R-73 |
| 21-1/4" | 5,000 | 39" | 24 | 2" | 19" | BX-165 |
| 21-1/4" | 10,000 | 45" | 24 | 2-1/2" | 24-3/4" | BX-166 |
| 26-3/4" | 2,000 | 41" | 20 | 1-3/4" | 14-1/4" | BX-167 |
| 21-1/4" | 3,000 | 43-3/8" | 24 | 2" | 17-1/2" | BX-168 |

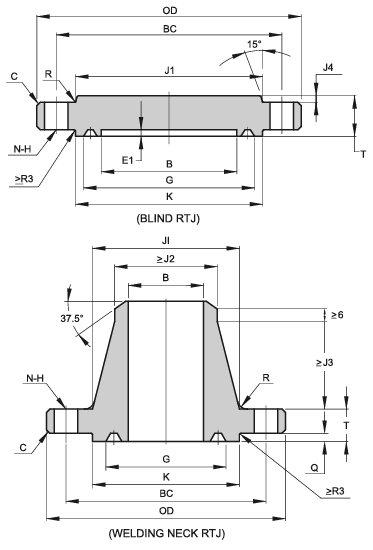

API 6A Type 6BX 15000PSI Blind / Welding Neck Flange
we are supplier of API 6A flanges like 15000PSI(103.5MPA) API 6A type 6BX blind/Welding Neck Flange, include type 6B, 6BX with RTJ connection pressure rating from 2000PSI (13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI (69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
| Size | B | OD | C | E1 | Q | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | Ring Number |
| 1 13/16" | 46.8 | 210 | 3 | - | 5.56 | 77.77 | 106 | 45.3 | 97.6 | 71.4 | 47.6 | - | 10 | 160.3 | 8 | 26 | 151 |
| 2 1/16" | 53.2 | 220 | 3 | - | 5.95 | 86.23 | 114 | 50.8 | 111.1 | 82.5 | 54 | - | 10 | 174.6 | 8 | 26 | 152 |
| 2 9/16" | 65.9 | 255 | 3 | - | 6.75 | 102.77 | 133 | 57.2 | 128.6 | 100 | 57.1 | - | 10 | 200 | 8 | 29 | 153 |
| 3 1/16" | 78.6 | 290 | 3 | - | 7.54 | 119 | 154 | 64.3 | 154 | 122.2 | 63.5 | - | 10 | 230.2 | 8 | 32 | 154 |
| 4 1/16" | 104 | 360 | 3 | - | 8.33 | 150.62 | 194 | 78.6 | 195.3 | 158.7 | 73 | - | 10 | 290.5 | 8 | 39 | 155 |
| 5 1/8" | 131 | 420 | 3 | 9.5 | 9.53 | 176.66 | 225 | 98.5 | 244.5 | 200 | 81.8 | 6.4 | 16 | 342.9 | 12 | 42 | 169 |
| 7 1/16" | 180.2 | 505 | 6 | 11.1 | 11.11 | 241.83 | 305 | 119.1 | 325.4 | 276.2 | 92.1 | 7.9 | 16 | 428.6 | 16 | 42 | 156 |
| 9 " | 229.4 | 650 | 6 | 12.7 | 12.7 | 299.06 | 381 | 146.1 | 431.8 | 349.2 | 123.8 | 14.2 | 16 | 552.4 | 16 | 51 | 157 |
| 11" | 280.2 | 815 | 6 | 14.3 | 14.29 | 357.23 | 454 | 187.4 | 584.2 | 427 | 235.7 | 12.7 | 16 | 711.2 | 20 | 54 | 158 |
| 13 5/8" | 346.9 | 885 | 6 | 15.9 | 15.88 | 432.64 | 541 | 204.8 | 595.3 | 528.6 | 114.3 | 17.5 | 25 | 771.5 | 20 | 61 | 159 |
| 18 3/4" | 477 | 1160 | 6 | 18.3 | 18.26 | 577.9 | 722 | 255.6 | 812.8 | 730.2 | 155.6 | 35.1 | 25 | 1016 | 20 | 80 | 164 |
API 6A Type 6B 2000PSI Blind / Welding Neck Flange
We are supplier of API 6A flanges like 2000PSI(13.8MPA) API 6A type 6B Welding Neck Flange Blind Flange, include type 6B, 6BX with RTJ connection pressure rating from 2000PSI(13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI(69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
Dimension of 2000PSI (13.8MPA) type 6B Blind and Welding Neck API 6A Flange
| Size | B | OD | C | K | P | E | T | Q | X | BC | N | H | LN | HL | JL | R/RX |
| 2 1/16" | 53.2 | 165 | 3 | 108 | 82.55 | 7.9 | 33.4 | 25.4 | 84 | 127 | 8 | 20 | 81 | 60.3 | 53.3 | 23 |
| 2 9/16" | 65.9 | 190 | 3 | 127 | 101.6 | 7.9 | 36.6 | 28.6 | 100 | 149.2 | 8 | 23 | 88 | 73 | 63.5 | 26 |
| 3 1/8" | 81.8 | 210 | 3 | 146 | 123.83 | 7.9 | 39.7 | 31.8 | 117 | 168.3 | 8 | 23 | 91 | 88.9 | 78.7 | 31 |
| 4 1/16" | 108.7 | 275 | 3 | 175 | 149.23 | 7.9 | 46.1 | 38.1 | 152 | 215.9 | 8 | 26 | 110 | 114.3 | 103.1 | 37 |
| 5 1/8" | 131 | 330 | 3 | 210 | 180.98 | 7.9 | 52.4 | 44.5 | 189 | 266.7 | 8 | 29 | 122 | 141.3 | 122.9 | 41 |
| 7 1/16" | 181.8 | 355 | 6 | 241 | 211.15 | 7.9 | 55.6 | 47.6 | 222 | 292.1 | 12 | 29 | 126 | 168.3 | 147.1 | 45 |
| 9" | 229.4 | 420 | 6 | 302 | 269.88 | 7.9 | 63.5 | 55.6 | 273 | 349.3 | 12 | 32 | 141 | 219.1 | 199.1 | 49 |
| 11" | 280.2 | 510 | 6 | 356 | 323.85 | 7.9 | 71.5 | 63.5 | 343 | 431.8 | 16 | 35 | 160 | 273 | 248.4 | 53 |
| 13 5/8" | 346.9 | 560 | 6 | 413 | 381 | 7.9 | 74.7 | 66.7 | 400 | 489 | 20 | 35 | - | - | - | 57 |
| 16 3/4" | 426.2 | 685 | 6 | 508 | 469.9 | 7.9 | 84.2 | 76.2 | 495 | 603.2 | 20 | 42 | - | - | - | 65 |
| 21 1/4" | 540.5 | 815 | 6 | 635 | 584.2 | 9.7 | 98.5 | 88.9 | 610 | 723.9 | 24 | 45 | - | - | - | 73 |
API 6A Type 6BX 2000PSI Blind Flange
We are supplier of API 6A flanges like 2000PSI(13.8MPA) API 6A type 6BX Blind Flange, include type 6B, 6BX with RTJ connection, pressure rating from 2000PSI(13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI(69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
Dimension of 2000PSI (13.8MPA) type 6BX Blind API 6A Flange
| Size | OD | C | E1 | G | K | T | J1 | J4 | R | BC | N | H | BX |
| 26 3/4" | 1040 | 6 | 21.4 | 768.33 | 805 | 126.3 | 835.8 | 9.7 | 16 | 952.5 | 20 | 48 | 167 |
| 30" | 1120 | 6 | 23 | 862.3 | 908 | 134.2 | 931.9 | 17.5 | 16 | 1039.8 | 32 | 45 | 303 |
API 6A Type 6B 3000PSI Blind / Welding Neck Flange
We are supplier of API 6A flanges like 3000PSI(20.7MPA) API 6A type 6B Welding Neck Flange Blind Flange, include type 6B, 6BX with RTJ connection pressure rating from 2000PSI(13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI(69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment..
Dimension of 3000PSI (20.7MPA) type 6B Blind and Welding Neck API 6A Flange
| Size | B | OD | C | K | P | E | T | Q | X | BC | N | H | LN | HL | JL | R/RX |
| 2 1/16" | 53.2 | 215 | 3 | 124 | 95.25 | 7.9 | 46.1 | 38.1 | 104.8 | 165.1 | 8 | 26 | 109.6 | 60.3 | 50 | 24 |
| 2 9/16" | 65.9 | 245 | 3 | 137 | 107.95 | 7.9 | 49.3 | 41.3 | 123.8 | 190.5 | 8 | 29 | 112.7 | 73 | 59.7 | 27 |
| 3 1/8" | 81.8 | 240 | 3 | 156 | 123.83 | 7.9 | 46.1 | 38.1 | 127 | 190.5 | 8 | 26 | 109.5 | 88.9 | 74.4 | 31 |
| 4 1/16" | 108.7 | 290 | 3 | 181 | 149.23 | 7.9 | 52.4 | 44.4 | 158.8 | 235 | 8 | 32 | 122.2 | 114.3 | 98 | 37 |
| 5 1/8" | 131 | 350 | 3 | 216 | 180.98 | 7.9 | 58.8 | 50.8 | 190.5 | 279.4 | 8 | 35 | 134.9 | 141.3 | 122.9 | 41 |
| 7 1/16" | 181.8 | 380 | 6 | 241 | 211.15 | 7.9 | 63.5 | 55.6 | 235 | 317.5 | 12 | 32 | 147.6 | 168.3 | 147.1 | 45 |
| 9" | 229.4 | 470 | 6 | 308 | 269.88 | 7.9 | 71.5 | 63.5 | 298.5 | 393.7 | 12 | 39 | 169.9 | 219.1 | 189.7 | 49 |
| 11" | 280.2 | 545 | 6 | 362 | 323.85 | 7.9 | 77.8 | 69.9 | 368.3 | 469.9 | 16 | 39 | 192.1 | 273 | 237.2 | 53 |
| 13 5/8" | 346.9 | 610 | 6 | 419 | 381 | 7.9 | 87.4 | 79.4 | 419.1 | 533.4 | 20 | 39 | - | - | - | 57 |
| 16 3/4" | 426.2 | 705 | 6 | 524 | 469.9 | 11.2 | 100.1 | 88.9 | 508 | 616 | 20 | 45 | - | - | - | 66 |
| 20 3/4" | 527.8 | 855 | 6 | 648 | 584.2 | 12.7 | 120.7 | 108 | 622.3 | 749.3 | 20 | 54 | - | - | - | 74 |
API 6A Type 6B 5000PSI Blind / Welding Neck Flange
We are supplier of API 6A flanges like 5000PSI(34.5MPA) API 6A type 6B Welding Neck Flange Blind Flange, include type 6B, 6BX with RTJ connection pressure rating from 2000PSI(13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI(69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
Dimension of 5000PSI (34.5MPA) type 6B Blind and Welding Neck API 6A Flange
| Size | B | OD | C | K | P | E | T | Q | X | BC | N | H | LN | HL | JL | R/RX |
| 2 1/16" | 53.2 | 215 | 3 | 124 | 95.25 | 7.9 | 46.1 | 38.1 | 104.8 | 165.1 | 8 | 26 | 109.5 | 60.3 | 43.7 | 24 |
| 2 9/16" | 65.9 | 245 | 3 | 137 | 107.95 | 7.9 | 49.3 | 41.3 | 123.8 | 190.5 | 8 | 29 | 112.7 | 73 | 54.9 | 27 |
| 3 1/8" | 81.8 | 265 | 3 | 168 | 136.53 | 7.9 | 55.6 | 47.7 | 133.3 | 203.2 | 8 | 32 | 125.4 | 88.9 | 67.5 | 35 |
| 4 1/16" | 108.7 | 310 | 3 | 194 | 161.93 | 7.9 | 62 | 54 | 161.9 | 241.3 | 8 | 35 | 131.8 | 114.3 | 88.1 | 39 |
| 5 1/8" | 131 | 375 | 3 | 229 | 193.68 | 7.9 | 81 | 73.1 | 196.8 | 292.1 | 8 | 42 | 163.5 | 141.3 | 110.3 | 44 |
| 7 1/16" | 181.8 | 395 | 6 | 248 | 211.15 | 9.7 | 92.1 | 82.6 | 228.6 | 317.5 | 12 | 39 | 181 | 168.3 | 132.6 | 46 |
| 9" | 229.4 | 485 | 6 | 318 | 269.88 | 11.2 | 103.2 | 92.1 | 292.1 | 393.7 | 12 | 45 | 223.8 | 219.1 | 173.8 | 50 |
| 11" | 280.2 | 585 | 6 | 371 | 323.85 | 11.2 | 119.1 | 108 | 368.3 | 482.6 | 12 | 51 | 265.1 | 273.1 | 216.7 | 54 |
API 6A Type 6BX 10000PSI Blind / Welding Neck Flange
We are supplier of API 6A flanges like 10000PSI(69.0MPA) API 6A type 6BX blind/Welding Neck Flange, include type 6B, 6BX with RTJ connection pressure rating from 2000PSI (13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI(69.0MPA), 15000PSI(103.5MPA), to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients. To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.
Dimension of 10000PSI(69.0MPA) type 6BX blind/Welding Neck API 6A Flange
| Size | B | OD | C | E1 | Q | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | BX |
| 1 13/16" | 46.8 | 185 | 3 | - | 5.56 | 77.77 | 105 | 42.1 | 88.9 | 65.1 | 48.5 | - | 10 | 146.1 | 8 | 23 | 151 |
| 2 1/16" | 53.2 | 200 | 3 | - | 5.95 | 86.23 | 111 | 44.1 | 100 | 74.7 | 51.6 | - | 10 | 158.8 | 8 | 23 | 152 |
| 2 9/16" | 65.9 | 230 | 3 | - | 6.75 | 102.77 | 132 | 51.2 | 120.7 | 92.1 | 57.2 | - | 10 | 184.2 | 8 | 26 | 153 |
| 3 1/16" | 78.6 | 270 | 3 | - | 7.54 | 119 | 152 | 58.4 | 142.1 | 110.2 | 63.5 | - | 10 | 215.9 | 8 | 29 | 154 |
| 4 1/16" | 104 | 315 | 3 | - | 8.33 | 150.62 | 185 | 70.3 | 182.6 | 146.1 | 73.1 | - | 10 | 258.8 | 8 | 32 | 155 |
| 5 1/8" | 131 | 360 | 3 | 9.5 | 9.53 | 176.66 | 221 | 79.4 | 223.8 | 182.6 | 81 | 6.4 | 10 | 300 | 12 | 32 | 169 |
| 7 1/16" | 180.2 | 480 | 6 | 11.1 | 11.11 | 241.83 | 302 | 103.2 | 301.6 | 254 | 95.3 | 9.7 | 16 | 403.2 | 12 | 42 | 156 |
| 9 " | 229.4 | 550 | 6 | 12.7 | 12.7 | 299.06 | 359 | 123.9 | 374.7 | 327.1 | 93.7 | 9.7 | 16 | 476.3 | 16 | 42 | 157 |
| 11" | 280.2 | 655 | 6 | 14.3 | 14.29 | 357.23 | 429 | 141.3 | 450.9 | 400.1 | 103.2 | 14.2 | 16 | 565.2 | 16 | 48 | 158 |
| 13 5/8" | 346.9 | 770 | 6 | 15.9 | 15.88 | 432.64 | 518 | 168.3 | 552.5 | 495.3 | 114.3 | 17.5 | 16 | 673.1 | 20 | 51 | 159 |
| 16 3/4" | 426.2 | 870 | 6 | 8.3 | 8.33 | 478.33 | 576 | 168.3 | 655.6 | 601.7 | 76.2 | 30.2 | 19 | 776.3 | 24 | 51 | 162 |
| 18 3/4" | 477 | 1040 | 6 | 18.3 | 18.26 | 577.9 | 697 | 223.1 | 752.5 | 674.7 | 155.6 | 25.4 | 16 | 925.5 | 24 | 61 | 164 |
| 21 1/4" | 540.5 | 1145 | 6 | 19.1 | 19.05 | 647.88 | 781 | 241.3 | 847.7 | 762 | 165.1 | 31.8 | 21 | 1022.4 | 24 | 67 | 166 |
Specification of API Flange, API 6A Flange
| Flange Size | Working Pressure (PSI) | Outside Diameter | Number of Bolt Holes | Diameter of Bolt Holes | Length of Bolts | API Ring Gasket |
|---|---|---|---|---|---|---|
| 1-13/16" | 10,000 | 7-3/8" | 8 | 3/4" | 5-1/4" | BX-151 |
| 1-13/16" | 15,000 | 8-3/16" | 8 | 7/8" | 6" | BX-151 |
| 1-13/16" | 20,000 | 10-1/8" | 8 | 1" | 7-3/4" | BX-151 |
| 2-1/16" | 2,000 | 6-1/2" | 8 | 5/8" | 5/8" | R-23 |
| 2-1/16" | 3,000/5,000 | 8-1/2" | 8 | 7/8" | 7/8" | R-24 |
| 2-1/16" | 10,000 | 7-7/8" | 8 | 3/4" | 3/4" | BX-152 |
| 2-1/16" | 15,000 | 8-3/4" | 8 | 7/8" | 7/8" | BX-152 |
| 2-1/16" | 20,000 | 11-5/16" | 8 | 1-1/8" | 1-1/8" | BX-152 |
| 2-9/16" | 2,000 | 7-1/2" | 8 | 3/4" | 5-1/4" | R-26 |
| 2-9/16" | 3,000/5,000 | 9-5/8" | 8 | 1" | 7" | R-27 |
| 2-9/16" | 10,000 | 9-1/8" | 8 | 7/8" | 6-1/4" | BX-153 |
| 2-9/16" | 15,000 | 10" | 8 | 1" | 7" | BX-153 |
| 2-9/16" | 20,000 | 12-13/16" | 8 | 1-1/4" | 9-1/2" | BX-153 |
| 3-1/8" | 2,000 | 8-1/4" | 8 | 3/4" | 5-1/2" | R-31 |
| 3-1/8" | 3,000 | 9-1/2" | 8 | 7/8" | 6-1/4" | R-31 |
| 3-1/8" | 5,000 | 10-1/2" | 8 | 1-1/8" | 7-3/4" | R-35 |
| 3-1/16" | 10,000 | 10-5/8" | 8 | 1" | 7-1/4" | BX-154 |
| 3-1/16" | 15,000 | 11-5/16" | 8 | 1-1/8" | 8" | BX-154 |
| 3-1/16" | 20,000 | 14-1/16" | 8 | 1-3/8" | 10-3/4" | BX-154 |
| 4-1/16" | 2,000 | 10-3/4" | 8 | 7/8" | 6-1/4" | R-37 |
| 4-1/16" | 3,000 | 11-1/2" | 8 | 1-1/8" | 7-1/2" | R-37 |
| 4-1/16" | 5,000 | 12-1/4" | 8 | 1-1/8" | 8-3/8" | BX-155 |
| 4-1/16" | 20,000 | 17-9/16" | 8 | 1-3/4" | 12-3/4" | BX-155 |
| 5-1/8" | 5,000 | 14-3/4" | 8 | 1-1/2" | 10-3/4" | R-44 |
| 7-1/16" | 2,000 | 14" | 12 | 1" | 7-1/2" | R-45 |
| 7-1/16" | 3,000 | 15" | 12 | 1-1/8" | 8-1/2" | R-45 |
| 7-1/16" | 5,000 | 15-1/2" | 12 | 1-3/8" | 11-1/4" | R-46 |
| 7-1/16" | 10,000 | 18-7/8" | 12 | 1-1/2" | 11-3/4" | BX-156 |
| 7-1/16" | 15,000 | 19-7/8" | 16 | 1-1/2" | 13" | BX-156 |
| 7-1/16" | 20,000 | 24-13/16" | 16 | 2" | 17-3/4" | BX-156 |
| 9" | 2,000 | 16-1/2" | 12 | 1-1/8" | 8-1/2" | R-49 |
| 9" | 3,000 | 18-1/2" | 12 | 1-3/8" | 9-1/2" | R-49 |
| 9" | 5,000" | 19" | 12 | 1-5/8" | 12-1/2" | R-50 |
| 9" | 10,000 | 21-3/4" | 16 | 1-1/2" | 13-1/4" | BX-157 |
| 9" | 15,000 | 25-1/2" | 16 | 1-7/8" | 16" | BX-157 |
| 11" | 2,000 | 20" | 16 | 1-1/4" | 9-1/4" | R-53 |
| 11" | 3,000 | 21-1/2" | 16 | 1-3/8" | 10" | R-53 |
| 11" | 5,000 | 23" | 12 | 1-7/8" | 14-1/4" | R-54 |
| 11" | 10,000 | 25-3/4" | 16 | 1-3/4" | 15-3/8" | BX-158 |
| 11" | 15,000 | 32" | 20 | 2" | 19-1/2" | BX-158 |
| 13-5/8" | 2,000 | 22" | 20 | 1-1/4" | 9-1/2" | R-57 |
| 13-5/8" | 3,000 | 24" | 20 | 1-3/8" | 10-3/4" | R-57 |
| 13-5/8" | 5,000 | 26-1/2" | 16 | 1-5/8" | 12-3/4" | BX-160 |
| 13-5/8" | 10,000 | 30-1/4" | 20 | 1-7/8" | 17-3/4" | BX-159 |
| 13-5/8" | 15,000 | 34-7/8" | 20 | 2-1/4" | 21" | BX-159 |
| 16-3/4" | 2,000 | 27" | 20 | 1-1/2" | 10-3/4" | R-65 |
| 16-3/4" | 3,000 | 27-3/4" | 20 | 1-5/8" | 12-1/4" | R-66 |
| 16-3/4" | 5,000 | 30-3/8" | 16 | 1-78" | 14-3/4" | BX-162 |
| 16-3/4" | 10,000 | 34-5/16" | 24 | 1-7/8" | 17-3/4" | BX-162 |
| 18-3/4" | 5,000 | 35-5/8" | 20 | 2" | 18" | BX-163 |
| 16-3/4" | 10,000 | 40-15/16" | 24 | 2-1/4" | 23" | BX-164 |
| 20-3/4" | 3,000 | 33-3/4" | 20 | 2" | 15-1/4" | R-74 |
| 21-1/4" | 2,000 | 32" | 24 | 1-5/8" | 12-1/2" | R-73 |
| 21-1/4" | 5,000 | 39" | 24 | 2" | 19" | BX-165 |
| 21-1/4" | 10,000 | 45" | 24 | 2-1/2" | 24-3/4" | BX-166 |
| 26-3/4" | 2,000 | 41" | 20 | 1-3/4" | 14-1/4" | BX-167 |
| 21-1/4" | 3,000 | 43-3/8" | 24 | 2" | 17-1/2" | BX-168 |
Leading manufacturer of API Flanges
We also having stock of API Flanges & other Stainless Steel Flanges, Carbon Steel Flanges, Alloy Steel Flanges manufactured by :
| Erne Fittings, Austria | Metal far, Italy | Lame S.R.l., Italy |
| BENKAN Corporation, Japan | BKL- Thai Benkan, Thailand | TecnoForge, Italy |
| Ulma, Spain | Mega, Italy | Melesi, Italy |
| Interfit, France | Raccortubi S.P.A., Italy |
we are the distributor of the of these Brands. we also have the sales representative who can provide the proper information of these Brands & about Grades, material and sizes of API Flanges.
Our Live Stock of API Flanges
|
|
|
API Flanges Application
|
|
Flanges ::
Flange Standard, Fitting Standard, Pipe Standard, Valve Standard | ||
| ANSI Flange | DIN Flange | EN Flange |
| ASME Flange | JIS/KS Flange | GB Flange |
| GOST Flange | BS Flange | UNI / Api Flange |
| Flanges :: | ||
| Blind Flanges | Reducing Threaded Flanges | Lap Joint Flanges |
| Flange Gaskets | Threaded Flanges | Socketweld Flanges |
| Flanges Bolts | Ring Flange | Spectacle Blind Flanges |
| Weld Neck Flanges | Orifice Flange | Slip-On-Flanges |
| High Hub Blinds Flanges | ||
Manufacturers And Suppliers Of Different Types Of Flanges listed Below
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
Cities We Deliver To
Riyadh, Faridabad, Courbevoie, Kolkata, Rajkot, Howrah, Atyrau, Petaling Jaya, Ankara, Ho Chi Minh City, Kanpur, Istanbul, Geoje-si, La Victoria, Ahmedabad, Los Angeles, Montreal, New Delhi, Granada, Jeddah, Aberdeen, Calgary, Nashik, London, Chandigarh, Hyderabad, Chiyoda, Milan, Gimhae-si, Mumbai, Kuala Lumpur, Muscat, Ranchi, Abu Dhabi, Jakarta, Ernakulam, Tehran, Vung Tau, Kuwait City, Surat, Sydney, Houston, Edmonton, Ludhiana, Pune, Port-of-Spain, Ulsan, Caracas, Coimbatore, Mexico City, Hanoi, Al Khobar, Pimpri-Chinchwad, Bangkok, Secunderabad, Vadodara, Jaipur, Perth, Chennai, Cairo, Karachi, New York, Gurgaon, Melbourne, Manama, Busan, Rio de Janeiro, Colombo, Bengaluru, Madrid, Indore, Toronto, Ahvaz, Dubai, Thiruvananthapuram, Bhopal, Brisbane, Nagpur, Sharjah, Al Jubail, Thane, Dammam, Singapore, Santiago, Haryana, Doha, Moscow, Lagos, Jamshedpur, Baroda, Visakhapatnam, Dallas, Lahore, Hong Kong, Seoul, Noida, Bogota, Algiers, Navi Mumbai
Countries We Deliver To
Indonesia, Hong Kong, Kenya, Trinidad & Tobago,Tunisia, Kuwait, Russia, Norway, Mongolia, Croatia, Tibet, Nigeria, Nepal, Czech Republic, Portugal, Spain, Turkey, Finland, Lebanon, Azerbaijan, France, Japan, South Korea, Libya, Bolivia, Iraq, United Arab Emirates, Germany, Saudi Arabia, Jordan, Zimbabwe, Netherlands, Bhutan, United States, Morocco, Switzerland, Austria, Puerto Rico, Lithuania, Sweden, Poland, Serbia, Romania, Denmark, Bulgaria, South Africa, Iran, China, Qatar, Nigeria, Bangladesh, Gambia, Slovakia, New Zealand, Peru, Canada, Yemen, Ireland, Sri Lanka, Philippines, Iran, Costa Rica, Ecuador, Mexico, Italy, United Kingdom, Belgium, Israel, Venezuela, Thailand, Angola, Estonia, Belarus, Brazil, Taiwan, Pakistan, Hungary, Vietnam, Australia, Afghanistan, Algeria, Kazakhstan, Gabon, Mexico, Poland, Bahrain, Malaysia, Greece, Macau, Chile, Singapore, Colombia, Oman, Chile, Namibia, Ukraine, Ghana, Argentina, India, Egypt
prime quality API Flanges, Source for API Flanges, specialize in API Flanges, API Flanges with Test Certificate, API Flanges at dealer price, API Flanges in India , API Flanges Prices in India , Stainless Steel Pipe Fittings Stockist in India , API Flanges Supplier in India , API Flanges Exporter in India , API Flanges Manufacturer in India , API Flanges Distributor in India , API Flanges Trader in India , API Flanges Dealer in India , API Flanges Stockholder in India , API Flanges Importer in India. , API Flanges distributor in Mumbai , API Flanges with Test Certificate , API Flanges Manufacturer in Mumbai,API Flanges, best quality API Flanges, India’s largest API Flanges manufacturer, wide variety of API Flanges, API Flanges India, API Flanges distributor Mumbai, API Flanges traders
Ansi b16.5 Flanges- Ansi b16.47 Flanges
- DIN Flanges PN6 – PN40
- UNI Flanges PN6 – PN40
- EN1092-1 Flanges pn6-pn40
- jis b2220 Flanges
- BS 4504 pn6 pn40 Flanges
- BS 10 Flanges
- sabs / sans 1123 Flanges
- GOST / ГОСТ 12820-80 Flanges
- GOST / ГОСТ 12821-80 Flanges
- MSS SP-44 Flanges
API Flanges- Awwa c207 Flanges
- ISO FLANGES
- FRENCH NFE 29203 FLANGES
- AUSTRALIAN FLANGES
- NORWEGIAN NS FLANGES
- SWISS VSM Flanges
- Korean Flanges
- Dummy Flanges
- Flanges Dimensional
- Flanges Tolerance
- Gunmetal Flanges
- Taylor Flanges
- Aluminium Flanges
- Copper Flanges
- PN16 Flanges
- Forged Flanges
- Blind Flanges
- Slip On Flanges
- Weld Neck Flanges
- Lap Joint Flanges
- Threaded Flanges
- Socket Weld Flanges
- Long Weld Neck Flanges
- Weldo / Nipo Flanges
- Orifice Flanges
- Reducing Flanges
- Flat Flanges
- Loose Flanges
- RTJ Flanges
- SORF Flanges
- Square Flanges
- SWRF Flanges
- Expander Flanges
- WNRF Flanges
- Ring Type Joint Flanges
- Groove & Tongue Flanges
- High Hub Blinds Flanges
- Spectacle Blind Flanges
- Weld Neck Flanges A / B
- Spades Ring Spacers Flanges
- Screwed Flanges
- Forging Facing Flanges
- Flanges Bolts
