Blind Flanges Manufacturers in India

 Home / Blind Flanges

India's Most Experienced Manufacturers,Suppliers and Exporter of Blind Flanges, BLRF Flanges, Carbon Steel Blind Flanges, Stainless Steel Blind Flanges, Alloy Steel Blind Flanges, Nickel Blind Flanges,ANSI/ASME B16.5, B16.47, B16.47, B16.36, B16.48 Blind Flanges,ANSI B16.5 Blind Flanges, Inconel Blind Flanges, Hastelloy Blind Flanges in India & UK

We are largest manufacturers of Blind Flanges & have huge stock of 304 Blind Flanges, 316 Blind Flanges, astm a105 Blind Flanges, astm a182 Blind Flanges as per asme / ansi B16.5 blind flanges, ansi B16.47 blind flanges,304 Blind Flanges, 316 Blind Flanges, Astm A105 Blind Flanges, Astm A182 Blind Flanges, Awwa C207 Class B Blind Flange, Din blind flanges, jis blind flanges & uni blind flanges Standards.

Best Price of Blind Flanges in all size, classes & dimensions like Class 150 Blind Flanges, Class 300 Blind Flanges, Class 900 Blind Flanges, Class 1500 Blind Flanges, Class 2500 Blind Flanges, pn16 blind flange dimensions & pn40 blind flange dimensions,Blind Flanges, steel valve, flanges bolts, steel flanges, steel forgings range of flange and forging types and sizes

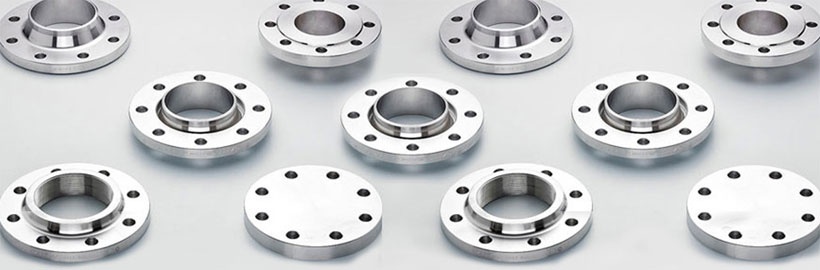

Blind Flanges


Blind Flange include lots of kinds, which has no bore, and is used to close piping system. When you open a piping system and Blind flange also permits easy access to a line once it has been closed. The low pressure pipe system be contacted by threaded / screwed. Blind Flange manufacturer Rexino Stainless supplies Blind Flanges, Industrial Blind Flanges, in ANSI B16.5 etc.

Flanges ::

Blind Flange, Plate flange, blind forged flange Manufacturers Suppliers Exporters India

Blind Flange, Plate flange, blind forged flange ::
  • B16.5 Blind Flange 150lb
  • B16.5 Blind Flange 300lb
  • B16.5 Blind Flange 600lb
  • B16.5 Blind Flange 900lb
  • B16.5 Blind Flange 1500lb
  • B16.5 Blind Flange 2500lb
  • B16.47 Series B (API)Blind Flange 75lb
  • B16.47 Series B (API)Blind Flange 150lb
  • B16.47 Series B (API)Blind Flange 300lb
  • B16.47 Series B (API)Blind Flange 600lb
  • B16.47 Series B (API)Blind Flange 900lb
  • B16.47 Series A (MSS SP44) Blind Flange 150lb
  • B16.47 Series A (MSS SP44) Blind Flange 300lb
  • B16.47 Series A (MSS SP44) Blind Flange 600lb
  • B16.47 Series A (MSS SP44) Blind Flange 900lb

Description of Blind flange

  • Type: Blind Flange
  • Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
  • Standard: ANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
  • Size: 1/2-78 inch (DN15-DN2000)
  • Pressure: ANSI class 150,300,600,1500,2500, DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160
  • Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
  • Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
  • E-catalogue: Available , please visit catalogue of flange
  • Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
Class 150 BlindsClass 300 Blinds
Class 600 BlindsClass 1500 Blinds

Blind Flanges

  • Blind Flanges Flanges Price
  • Leading manufacturer of Blind Flanges
  • Our Live Stock of Blind Flanges
  • Blind Flanges Application

    • BS4505 Standard Blind Flanges, Stainless Steel Plate (PL) 101 Blind Flanges PN25 ASTM A815 UNS S31803/ F51/ S2205 Blind Flange

    Product Despriction
    Product Name BS4505 Standard Stainless Steel Plate(PL)101 Blind Flange PN25 ASTM A815 UNS S31803/F51/S2205 Blind Flange
    ItemsBlind Flanges, BL Flanges, ASME 16.5 Blind Flanges / BLRF Flanges
    Face Finish RF,FF,RTJ,TF,GF
    Standard ANSI ANSI B16.5 ASME B16.47 series A/B
    DIN DIN 2631 2573 2527 2565 2641
    GOST GOST 12820-80,GOST 12821-80,Gost Blind
    EN EN1092-1:2002
    JIS JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210
    BS BS4504,BS10 Table D/E
    UNI UNI 2253-67,UNI6091-67,UNI2276-67,UNI2280-67,UNI6089-67
    SABS SABS 1123
     ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN
    Material ANSI CS A105/SA 105N,SS 304/304L,316/316L Alloy Steel: WHPY45/52/65/80
    DIN CS RST37.2;S235JR SS 304/304L,316/316L
    GOST CS CT20;16MN;SS 304/304L,316/316L
    EN CS RST37.2;S235JR;C22.8SS 304/304L,316/316L
    JIS CS SS400,SF440,SS 304/304L, 316/316L
    BS CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
    UNI CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
    SABS CSRST37.2;S235JR;Q235;SS 304/304L,316/316L
     Stainless Steel Forged Flanges: ASTM A182 F202, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 316LN, 310S, 317L, 321, 410, 420, 440C, 202, F904L
    Carbon Steel Forged Flanges: A-350 LF2, LF3, A105
    Duplex Steel Forged Flanges: ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.
    Alloy Steel Forged Flanges: ASTM A182 F1, F5, F9, F11, F22, F91
    Special Alloy Forged Flanges: Duplex, Super Duplex, Nickel Alloys
    Nickel Alloy Forged Flanges: Cupro Nickel (90/10, 70/30, 66/30/2/2), Hastelloy (C-4, C-22, C276, B-2), Nickel (200 / 201 / 205), Monel 400 & K500), Inconel (600, 601, 625 & 825), Incolloy (800, 800H), Alloy 20, Duplex Steel, SS 904L, Titanium (1 & 2) Etc.
    Pressure ANSI Class 150, 300, 600, 900, 1500 2500lbs
    DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100
    GOST PN6,PN10,PN16,PN25
    EN PN6,PN10,PN16,PN25,PN40,PN64,PN100
    JIS 1K,2K,5K,10K,16K,20K,30K,40K
    BS PN6,PN10,PN16,PN25,PN40,PN64,PN100
    UNI PN6,PN10,PN16,PN25,PN40
    SABS 600KPA,1000,1600,2500,4000
    Size ANSI 1/2” – 60”
    DIN DN15-DN2000
    GOST DN10-DN1600
    EN DN15-DN2000
    JIS 15A-1500A
    BS DN15-DN2000
    UNI DN10-DN2000
    SABS DN10-DN600
    Coating varnish, yellow paint, anti-rust oil, galvanizing etc
    Usage Used for the connection of all kinds of pipeline
    to convey the water, steam, air, gas and oil
    Package Wooden cases/pallets
    Delivery Within 30 days
    Certificate TUV, ISO9001:2008
    Connection TypeRaised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove.Blind Raise Face -BLRF, Weld Neck Flanges – WNRF, Socket Weld Flanges – SWRF, Slip On Raise Face – SORF, Spectacle Blind, Ring Joint, Large Dia Flanges, Orifice Flanges, Girth Flange, Lap Joint Flanges, Screwed (Threaded) Flanges, Long Weld Neck Flanges, Reducing.
    Flanges Forms

    Dimensions of Blind Flanges ASME B16.5

    ASME/ANSI B16.5 150lb Blind Flange /Standards, Dimensions & Weight

    Pipe Normal Diam.O.D. Flange Thk. Of Flange Min Diameter of Raised Face Diam.
    of Bolt
    Circle    		Diam.
    of Bolt
    Holes    		Number
    of Bolts    		Diam. of
    Bolts
    (inch)    		KGLB
    inchdnOCGBCBHBNBD
    1/2″1589.00 11.20 35.10 60.50 15.80 41/2″0.51.1
    3/4″2098.50 12.70 42.90 69.90 15.80 41/2″0.81.8
    1″25108.00 14.20 50.80 79.30 15.80 41/2″0.92
    1-1/4″32117.50 15.70 63.50 88.90 15.80 41/2″1.32.9
    1-1/2″40127.00 17.50 73.20 98.60 15.80 41/2″1.63.5
    2″50152.50 19.10 91.90 120.70 19.10 45/8″2.65.7
    2-1/2″65178.00 22.40 104.60 139.70 19.10 45/8″4.19
    3″80190.50 23.90 127.00 152.40 19.10 45/8″5..111.2
    3-1/2″90216.00 23.90 139.70 177.80 19.10 85/8″6.514.3
    4″100228.50 23.90 157.20 190.50 19.10 85/8″7.516.5
    5″125254.00 23.90 185.70 215.90 22.40 83/4″9.220.3
    6″150279.50 25.40 215.90 241.30 22.40 83/4″11.826
    8″200343.00 28.40 269.70 298.50 22.40 83/4″20.445
    10″250406.50 30.20 323.90 362.00 25.40 127/8″3168
    12″300482.50 31.80 381.00 431.80 25.40 127/8″47103
    14″350533.50 35.10 412.80 476.30 28.50 121″60132
    16″400597.00 36.60 469.90 539.80 28.50 161″81178
    18″450635.00 39.60 533.40 577.90 31.80 161 1/8″93205
    20″500698.50 42.90 584.20 635.00 31.80 201 1/8″127280
    24″600813.00 47.80 692.20 749.30 35.10 201 1/4″190419

    Note:
    1) Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.


    ASME/ANSI B16.5 300lb Blind Flange /Standards, Dimensions & Weight

    Pipe Normal Diam.O.D. FlangeThk. Of Flange MinDiameter of Raised FaceDiam.
    of Bolt
    Circle    		Diam.
    of Bolt
    Holes    		Number
    of Bolts    		Diam. of
    Bolts
    (inch)    		Approx. Weight
    inchdnOCGBCBHBNBDKG/PCSLB/PCS
    1/2″1595.514.235.166.515.741/2″0.81.8
    3/4″20117. 515.742.982.619.145/8″1.22.6
    1″25124. 017.550.888.919.145/8″1.53.3
    1-1/4″32133. 519.163.598.619.145/8″24.4
    1-1/2″40155. 520.673.2114.322.445/8″2.96.4
    2″50165. 022.491.912719.185/8″3.57.7
    2-1/2″65190. 525.4104.6149.422.483/4″5.311.7
    3″80209. 528.4127168.122.483/4″7.215.9
    3-1/2″90228. 530.2139.7184.222.483/4″9.220.3
    4″100254. 031.8157.2200.222.483/4″12.226.8
    5″125279. 535.1185.723522.483/4″1635.2
    6″150317. 536.6215.9269.722.4123/4″2248.4
    8″200381. 041.1269.7330.225.4127/8″3679.5
    10″250444. 547.8323.9387.428.4161″55121
    12″300520. 550.8381450.931.8161 1/8″82.5182
    14″350584. 053.8412.8514..431.8201 1/8″108238
    16″400647. 557.2469.9571.535.1201 1/4″139306
    18″450711. 060.5533.4628.735.1241 1/4″178392
    20″500774. 563.5584.2685.835.1241 1/4″228503
    24″600914. 569.9692.2812.841.1241 1/2″350772

    Note:
    1) Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.


    ASME/ANSI B16.5 600lb Blind Flange /Standards, Dimensions & Weight

    Pipe Normal Diam.O.D. Flange Thk. Of Flange Min Diameter of Raised Face Diam.
    of Bolt
    Circle    		Diam.
    of Bolt
    Holes    		Number
    of Bolts    		Diam. of
    Bolts
    (inch)    		Approx. Weight
    inchdnOCGBCBHBNBDKG/PCSLB/PCS
    1/2″1595.514.235.166.515.741/2″0.81.8
    3/4″20117. 515.742.982.619.145/8″1.43.1
    1″25124. 017.550.888.919.145/8″1.73.7
    1-1/4″32133. 520.663.598.619.145/8″2.45.3
    1-1/2″40155. 522.473.2114.322.443/4″3.47.5
    2″50165. 025.491.912719.185/8″4.49.7
    2-1/2″65190. 528.4104.6149.422.483/4″6.815
    3″80209. 531.8127168.122.483/4″8.919.7
    3-1/2″90228. 535.1139.7184.225.487/8″12.728
    4″100273. 038.1157.2215.925.487/8″18.641
    5″125330. 044.5185.7266.728.481″30.868
    6″150355. 547.8215.9292.128.4121″3883.6
    8″200419. 055.6269.7349.331.8121 1/8″62.2137
    10″250508. 063.5323.9431.835.1161 1/4″102225
    12″300559. 066.538148935.1201 1/4″132291
    14″350603. 569.9412.8527.138.1201 3/8″158348
    16″400686. 076.2469.9603.341.1201 1/2″225496
    18″450743. 082.6533.4654.144.5201 5/8″285628
    20″500813. 088.9584.2723.944.5241 5/8″365805
    24″600940. 0101.6692.2838.250.8241 7/8″5321170

    Note:
    1) Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.


    ASME/ANSI B16.5 1500lb Blind Flange /Standards, Dimensions & Weight

    Pipe Normal Diam.O.D. FlangeThk. Of Flange MinDiam.
    of
    Hub    		Diam.
    of Bolt
    Circle    		Diam.
    of Bolt
    Holes    		Number
    of Bolts    		Diam. of
    Bolts
    (inch)    		Approx. Weight
    inchdnOCXBCBHBNBDKG/PCSLB/PCS
    1/2″15120.722.438.182.622.443/4″1.94.2
    3/4″2013025.444.588.922.443/4″2.76
    1″25149.428.452.3101.625.447/8″3.78.1
    1-1/4″32158.828.463.5111.325.447/8″4.39.5
    1-1/2″40177.831.869.912428.441″5.913
    2″50215.938.1104.6165.125.487/8″11.324.9
    2-1/2″65244.341.1124190.528.481″1635.2
    3″80266.747.8133.4190.525.487/8″19.543
    4″100311.253.8162.123531.881 1/8″3372.8
    5″125374.773.2196.9279.435.181 1/4″60132
    6″150393.782.6228.6317.531.8121 1/8″75165
    8″200482.691.9292.1393.738.1121 3/8″125275
    10″250584.2108368.3469.938.1161 3/8″215474
    12″300673.1124450.9533.438.1201 3/8″316697
    14″350749.3133.4495.3558.841.1201 1/2″
    16″400825.5146.1552.561644.5201 5/8″
    18″450914.4162.1596.9685.850.8201 7/8″
    20″500984.3177.8641.4749.353.8202″
    24″6001168.4203.2762901.766.5202 1/2″

    Note:
    1) Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.


    ASME/ANSI B16.5 2500lb Blind Flange /Standards, Dimensions & Weight

    Pipe Normal Diam.O.D. Flange Thk. Of Flange Min Diam.
    of Bolt
    Circle    		Diam.
    of Bolt
    Holes    		Number
    of Bolts    		Diam. of
    Bolts
    (inch)    		KGLB
    inchdnOCBCBHBNBD
    1/2″15133.430.288.922.443/4″37
    3/4″20139.731.895.322.443/4″4.510
    1″25158.835.110825.447/8″512
    1-1/4″32184.238.113028.441″818
    1-1/2″40203.244.5146.131.841 1/8″1125
    2″5023550.8171.528.481″1738
    2-1/2″65266.757.2196.931.881 1/8″2555
    3″80304.866.5228.635.181 1/4″3986
    4″100355.676.2273.141.181 1/2″60133
    5″125419.191.9323.947.881 3/4″101223
    6″150482.6108368.353.882″156345
    8″200552.5127438.253.8122″242533
    10″250673.1165.1539.866.5122 1/2″4651023
    12″300762184.2619.373.2122 3/4″6651463

    Note:
    1) Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.


    Dimensional Tolerances of Blind Flanges ASME B16.5

    Outside Diameter
    ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm    		Inside Diameter
    not applicable
    Diameter of Contact Face
    1.6 mm Raised Face = ± 0.8 mm
    6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm    		Outside Diameter of Hub
    ≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm
    Diameter of Counterbore
    not applicable    		Drilling
    Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm
    Eccentricity of Bolt Circle with Respect to Facing
    ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
    Thickness
    ≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0    		Length thru Hub
    ≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm

    Leading manufacturer of Blind Flanges

    We also having stock of Blind Flanges & other Stainless Steel Flanges, Carbon Steel Flanges, Alloy Steel Flanges manufactured by :

    Erne Fittings, AustriaMetal far, ItalyLame S.R.l., Italy
    BENKAN Corporation, JapanBKL- Thai Benkan, ThailandTecnoForge, Italy
    Ulma, SpainMega, ItalyMelesi, Italy
    Interfit, FranceRaccortubi S.P.A., Italy

    we are the distributor of the of these Brands. we also have the sales representative who can provide the proper information of these Brands & about Grades, material and sizes of Blind Flanges.


    Our Live Stock of Blind Flanges

    Stainless Steel blind Flanges manufacturers, supplier & stockist in india & asia

    Click Here for Stainless Steel Blind Flanges Live Stock

    		Carbon Steel blind Flanges manufacturers, supplier & stockist in india & asia

    Click Here for Carbon Steel Blind Flanges Live Stock

    		Alloy Steel blind Flanges manufacturers, supplier & stockist in india & asia

    Click Here for Alloy Steel Blind Flanges Live Stock

    Blind Flanges Application

    • Blind Flanges uses in Oil and Gas Pipeline
    • Blind Flanges uses in Chemical Industry
    • Blind Flanges uses in Plumbing
    • Blind Flanges uses in Oil & Gas Industry
    • Blind Flanges uses in Water Supply Systems
    • Blind Flanges uses in Paper & Pulp Industry
    • Blind Flanges uses in Power Plant
    • Blind Flanges uses in Fabrication Industry
    • Blind Flanges uses in General purpose applications
    • Blind Flanges uses in Food Processing Industry
    • Blind Flanges uses in Structural Pipe
    • Blind Flanges uses in Heat Exchangers


    We Stock All Different Types Of Blind Flanges At Latest price

    • blind flange uae
    • blind flange uk
    • blind flange usa
    • blind flange uses
    • blind flange vancouver
    • blind flange vs cap
    • blind flange vs end cap
    • blind flange with hole
    • ansi b 16.5 blind flange
    • api blind flange material
    • awwa c207 class b blind flange
    • awwa c207 class d blind flanges
    • awwa class b blind flange
    • awwa class e blind flange
    • blank flange vs blind flange
    • blind flange 1/2
    • blind flange 10 300
    • blind flange 10 600
    • blind flange 10k
    • blind flange 14
    • blind flange 150 lb
    • blind flange 150#
    • blind flange 1500#
    • blind flange 16
    • blind flange 2 1 16
    • blind flange 2 300
    • blind flange 2 600#
    • blind flange 20
    • blind flange 22
    • blind flange 24
    • blind flange 2500 lbs
    • blind flange bolt pattern
    • blind flange bolts
    • blind flange bored
    • blind flange catalog
    • blind flange chart
    • blind flange class 600 dimensions
    • blind flange class 600 weight
    • blind flange dimensions
    • blind flange dimensions 150
    • blind flange dimensions 300
    • blind flange dimensions 900#
    • blind flange dimensions class 600
    • blind flange dimensions in mmblind flange rf
    • blind flange ring joint
    • blind flange ring type joint
    • blind flange rtj
    • blind flange sa 105
    • blind flange schedule
    • blind flange series b
    • blind flange size chart
    • blind flange sizes
    • blind flange specs
    • blind flange standard ansi
    • blind flange supplier malaysia
    • blind flange supplier uk
    • blind flange suppliers
    • blind flange suppliers in uae
    • blind flange threaded
    • blind flange type 05
    • blind flange types
    • blind flange din 2527
    • blind flange dn 100
    • blind flange dn 800 blind flange with hub
    • blind flange with nipple
    • blind flange with nozzle
    • blind flange with npt tap
    • blind flange with npt thread
    • blind flange with threaded hole
    • blind off flange
    • blind orifice flange
    • c w blind flange
    • class d blind flange
    • class e blind flange
    • drilling a blind flange
    • en 1092-1 blind flange
    • galvanised blind flange
    • galvanized blind flange
    • ghost blind flange
    • kf blind flange
    • rf blind flange
    • series a blind flange
    • series b blind flange
    • spectacle blind flange manufacturers
    • spectacle blind flange material
    • blind flange 2500#
    • blind flange 28
    • blind flange 3 4
    • blind flange 3 inch
    • blind flange 30
    • blind flange 300 lbs
    • blind flange 300#
    • blind flange 32
    • blind flange 4-1/16
    • blind flange 600 class
    • blind flange 600 lbs
    • blind flange 600#
    • blind flange 8 600
    • blind flange 900 lbs
    • blind flange 900#
    • blind flange a105
    • blind flange ansi
    • blind flange ansi 300
    • blind flange ansi 600
    • blind flange ansi b16 5
    • blind flange api 10000
    • blind flange api 5000
    • blind flange api 6a
    • blind flange api 6bx
    • blind flange asme
    • blind flange asme b16.5
    • blind flange assembly
    • blind flange astm a105
    • blind flange awwa c207
    • blind flange b 16.5
    • blind flange b16.47
    • blind flange b16.5
    • blind flange class 150
    • blind flange class 300
    • blind flange class 600
    • blind flange class 900
    • blind flange korea
    • blind flange lrf
    • blind flange malaysia
    • blind flange manufacturers
    • blind flange material
    • blind flange pipe
    • blind flange pn 32
    • blind flange pn 40
    • blind flange pn10
    • blind flange pn16
    • blind flange pressure rating
    • blind flange price
    • blind flange price list
    • blind flange purpose
    • blind flange qatar
    • blind flange raised face
    • blind flange rating
    • blind flange reducer
    • blind flange nace
    • blind flange od
    • blind flange pdf
    • blind flange table
    • blind flange thickness
    • blind flange weight
    • blind flange weight 150#
    • blind flange weight 600#
    • blind flange weight chart in kg
    • blind flange weights kg
    • jis blind flange dimensions
    • pn10 blind flange dimensions
    • rf blind flange dimensions
    • ss blind flange dimensions
    • thickness of a blind flange
    • weight of a blind flange
    • ss blind flange
    • ss blind flange specification
    • table d blind flanges
    • table e blind flange
    • what is a blind flange used for
    • spectacle blind flange rf
    • spectacle blind flange uses
    • blind flange dimensions metric
    • weight of ss blind flange
    • blind flange dimensions pdf
    • blind flange drilled and tapped
    • blind flange en 1092
    • blind flange en 1092-1
    • blind flange end
    • blind flange end cap
    • blind flange fitting
    • blind flange flat face
    • blind flange hole
    • blind flange houston
    • blind flange houston tx
    • blind flange hub
    • blind flange india
    • blind flange indonesia
    • blind flange jakarta
    • blind flange jis
    • blind flange jis 10k
    • blind flange jis 5k


    Flanges ::

    Flange Standard, Fitting Standard, Pipe Standard, Valve Standard

    ANSI FlangeDIN FlangeEN Flange
    ASME FlangeJIS/KS FlangeGB Flange
    GOST FlangeBS FlangeUNI / Api Flange
    Flanges ::
    Blind FlangesReducing Threaded FlangesLap Joint Flanges
    Flange GasketsThreaded FlangesSocketweld Flanges
    Flanges BoltsRing FlangeSpectacle Blind Flanges
    Weld Neck FlangesOrifice FlangeSlip-On-Flanges
    High Hub Blinds Flanges

    ANSI/ASME steel flanges

      •  ANSI B16.47 Slip on flanges
      •  ANSI B16.5 lap joint flanges
      •  ANSI B16.47 steel weld neck flanges
      •  ANSI B16.47 steel blind flanges, blind cover
      •  ANSI B16.5 slip on flanges
      •  ANSI B16.5 stainless steel blind flange
      •  ANSI B16.5 long weld neck pipe flanges, LWN flange
      •  API standard forged stainless steel thread flanges, SCRD flange
      •  ANSI B16.5 stainless steel weld neck pipe flanges

    EN/PED Steel Flanges

    •  DIN2573, DIN2576 carbon steel plate flanges
    •  DIN2527 blind flanges
    •  DIN2573, DIN2576 plate flange, backing flange,gasket
    •  EN1092-1 F304/F304L plate flange
    •   DIN2634 steel weld neck flanges
    •  DIN2633 weld neck flanges EN1092-1 steel plate backing flanges
    •  EN1092-1 TYPE05 blind flanges
    •  EN1092-1 TYPE 11B weld neck flanges
    •  EN1092-1 type11B PN10 DN400 weld neck flange raised face

    BS Steel Flanges

    •  BS4504 code 105 steel blind flanges
    •  BS4504 code 101 steel plate flanges
    • BS4504 code 111 steel weld neck flanges

    JIS Steel Flanges

    •  JIS B2220 socket welding flange
    •  JIS B2220 slip on hubbed SOH flange
    •  JIS B2220 steel slip on plate SOP flanges
    •  JIS B2220 welding neck flanges

    Flange Standard

    •  API 6A Flange
    •  ANSI Flange
    •  ASME Flange
    •  DIN Flange
    •  EN1092-1 Flange
    •  UNI Flange
    •  JIS/KS Flange
    •  BS4504 Flange
    •  GB Flange
    •  AWWA C207 Flange
    •  GOST Flange
    •  PSI Flange

    Blind Flanges Price


    Manufacturers And Suppliers Of Different Types Of Flanges listed Below

    Forged Flanges Blind Flanges Slip on Flanges
    Weld Neck FlangesLapped Joint Flanges Threaded Flanges
    Socket Weld Flanges Long Weld Neck FlangesWeldo / Nipo Flanges
    Orifice Flanges Reducing Flanges Flat Flanges
    Loose Flanges RTJ Flanges Sorf Flanges
    Square Flanges Swrf FlangesExpander Flanges
    Wnrf Flanges Ring Type Joint Flanges Groove & Tongue Flanges
    High Hub Blinds Flanges Spectacle Blind Flanges Weld Neck Flanges A / BWeld Neck Flanges A / B
    Spades Ring Spacers Flanges Screwed Flanges Forging Facing Flanges

    Cities We Deliver To

    Riyadh, Faridabad, Courbevoie, Kolkata, Rajkot, Howrah, Atyrau, Petaling Jaya, Ankara, Ho Chi Minh City, Kanpur, Istanbul, Geoje-si, La Victoria, Ahmedabad, Los Angeles, Montreal, New Delhi, Granada, Jeddah, Aberdeen, Calgary, Nashik, London, Chandigarh, Hyderabad, Chiyoda, Milan, Gimhae-si, Mumbai, Kuala Lumpur, Muscat, Ranchi, Abu Dhabi, Jakarta, Ernakulam, Tehran, Vung Tau, Kuwait City, Surat, Sydney, Houston, Edmonton, Ludhiana, Pune, Port-of-Spain, Ulsan, Caracas, Coimbatore, Mexico City, Hanoi, Al Khobar, Pimpri-Chinchwad, Bangkok, Secunderabad, Vadodara, Jaipur, Perth, Chennai, Cairo, Karachi, New York, Gurgaon, Melbourne, Manama, Busan, Rio de Janeiro, Colombo, Bengaluru, Madrid, Indore, Toronto, Ahvaz, Dubai, Thiruvananthapuram, Bhopal, Brisbane, Nagpur, Sharjah, Al Jubail, Thane, Dammam, Singapore, Santiago, Haryana, Doha, Moscow, Lagos, Jamshedpur, Baroda, Visakhapatnam, Dallas, Lahore, Hong Kong, Seoul, Noida, Bogota, Algiers, Navi Mumbai


    Countries We Deliver To

    Indonesia, Hong Kong, Kenya, Trinidad & Tobago,Tunisia, Kuwait, Russia, Norway, Mongolia, Croatia, Tibet, Nigeria, Nepal, Czech Republic, Portugal, Spain, Turkey, Finland, Lebanon, Azerbaijan, France, Japan, South Korea, Libya, Bolivia, Iraq, United Arab Emirates, Germany, Saudi Arabia, Jordan, Zimbabwe, Netherlands, Bhutan, United States, Morocco, Switzerland, Austria, Puerto Rico, Lithuania, Sweden, Poland, Serbia, Romania, Denmark, Bulgaria, South Africa, Iran, China, Qatar, Nigeria, Bangladesh, Gambia, Slovakia, New Zealand, Peru, Canada, Yemen, Ireland, Sri Lanka, Philippines, Iran, Costa Rica, Ecuador, Mexico, Italy, United Kingdom, Belgium, Israel, Venezuela, Thailand, Angola, Estonia, Belarus, Brazil, Taiwan, Pakistan, Hungary, Vietnam, Australia, Afghanistan, Algeria, Kazakhstan, Gabon, Mexico, Poland, Bahrain, Malaysia, Greece, Macau, Chile, Singapore, Colombia, Oman, Chile, Namibia, Ukraine, Ghana, Argentina, India, Egypt


    Blind Flanges in France | Blind Flanges in United Kingdom | Blind Flanges in Indonesia | Blind Flanges in Iran | Blind Flanges in Kuwait | Blind Flanges in Mexico | Blind Flanges in Malaysia | Blind Flanges in Nigeria | Blind Flanges in Singapore | Blind Flanges in Saudi Arabia | Blind Flanges in Netherlands | Blind Flanges in Brazil | Blind Flanges in Colombia | Blind Flanges in Egypt | Blind Flanges in Iraq | Blind Flanges in Sri Lanka | Blind Flanges in Russia | Blind Flanges in Vietnam | Blind Flanges in South Africa | Blind Flanges in Nigeria | Blind Flanges in Turkey | Blind Flanges in Bangladesh | Blind Flanges in Italy | Blind Flanges in Japan | Blind Flanges in Thailand | Blind Flanges in Hong Kong | Blind Flanges in Switzerland | Blind Flanges in New Zealand | Blind Flanges in Mozambique | Blind Flanges Dubai | Blind Flanges Taiwan | Blind Flanges Chile | Blind Flanges Venezuela | Blind Flanges Denmark|Blind Flanges in India | Blind Flanges Prices in India | Stainless Steel Pipe Fittings Stockist in India | Blind Flanges Supplier in India | Blind Flanges Exporter in India | Blind Flanges Manufacturer in India | Blind Flanges Distributor in India | Blind Flanges Trader in India | Blind Flanges Dealer in India | Blind Flanges Stockholder in India | Blind Flanges Importer in India. | Blind Flanges distributor in Mumbai | Blind Flanges with Test Certificate | Blind Flanges Manufacturer in Mumbai | Blind Flanges in United States | Blind Flanges in United Arab Emirates | Blind Flanges in Canada | Blind Flanges in Pakistan | Blind Flanges in Spain

    Our Manufacturing Products

    Material

    Flanges Standards

    Our Valuable Clients
