Weld Neck Flanges A / B
Weld Neck Flanges A / B PriceLeading manufacturer of Weld Neck Flanges A / BOur Live Stock of Weld Neck Flanges A / BWeld Neck Flanges A / B ApplicationBS4505 Standard Weld Neck Flanges A / B, Stainless Steel Plate (PL) 101 Weld Neck Flanges A / B PN25 ASTM A815 UNS S31803/ F51/ S2205 Weld Neck Flanges A / B
|
Product Despriction |
|
Product Name | Weld Neck Flanges Series A/B | |
Face Finish |
RF,FF,RTJ,TF,GF | | Size Range | ½” (15 NB) to 48″ (1200NB) | |
Standard |
ANSI |
ANSI B16.5 ASME B16.47 series A/B | |
DIN |
DIN 2631 2573 2527 2565 2641 | |
GOST |
GOST 12820-80,GOST 12821-80,Gost Blind | |
EN |
EN1092-1:2002 | |
JIS |
JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210 | |
BS |
BS4504,BS10 Table D/E | |
UNI |
UNI 2253-67,UNI6091-67,UNI2276-67,UNI2280-67,UNI6089-67 | |
SABS |
SABS 1123 | |
Material |
ANSI |
CS A105/SA 105N,SS 304/304L,316/316L Alloy Steel: WHPY45/52/65/80 | |
DIN |
CS RST37.2;S235JR SS 304/304L,316/316L | |
GOST |
CS CT20;16MN;SS 304/304L,316/316L | |
EN |
CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
JIS |
CS SS400,SF440,SS 304/304L, 316/316L | |
BS |
CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
UNI |
CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
SABS |
CSRST37.2;S235JR;Q235;SS 304/304L,316/316L | |
Pressure |
ANSI |
Class 150, 300, 600, 900, 1500 2500lbs | |
DIN |
PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
GOST |
PN6,PN10,PN16,PN25 | |
EN |
PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
JIS |
1K,2K,5K,10K,16K,20K,30K,40K | |
BS |
PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
UNI |
PN6,PN10,PN16,PN25,PN40 | |
SABS |
600KPA,1000,1600,2500,4000 | |
Size |
ANSI |
1/2” – 60” | |
DIN |
DN15-DN2000 | |
GOST |
DN10-DN1600 | |
EN |
DN15-DN2000 | |
JIS |
15A-1500A | |
BS |
DN15-DN2000 | |
UNI |
DN10-DN2000 | |
SABS |
DN10-DN600 | |
Coating |
varnish, yellow paint, anti-rust oil, galvanizing etc | |
Usage |
Used for the connection of all kinds of pipeline | |
to convey the water, steam, air, gas and oil | |
Package |
Wooden cases/pallets | |
Delivery |
Within 30 days | |
Certificate |
TUV, ISO9001:2008 | | Carbon Steel Weld Neck Flanges Series A/B | ASTM / ASME A 105, ASTM / ASME A 350 LF 2 | | Stainless Steel Weld Neck Flanges Series A/B | ASTM A182 F202, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 316LN, 310S, 317L, 321, 410, 420, 440C, 202, F904L | | Alloy Steel Weld Neck Flanges Series A/B | ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91 | | Duplex Steel Weld Neck Flanges Series A/B | ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61. | | Copper Alloy Weld Neck Flanges Series A/B | ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600. ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200. | | Nickel Alloy Weld Neck Flanges Series A/B | ASTM / ASME SB 564 UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ), ASTM / ASME SB 472 UNS 8020 (ALLOY 20 / 20 CB 3) |
|
ASME/ ANSI B16.5 Weld Neck Flanges A / B Manufacturing Materials :
| Dimensions | Base Material | Pressure Rating |
| ASME B16.5 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| API 605 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| ASME B16.47series A & B | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| EN1092-1 | ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. PN250. PN320. PN400. |
| BS4504 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. |
| BS10 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) | |
Typical Stainless Steel 18/8 Grade Designations:
|
ASTM |
BS |
DIN |
EURONORM |
|
304 |
304S15 |
X5 Cr Ni 18 10 |
1.4301 |
|
304L |
304S11 |
X2 Cr Ni 18 9 |
1.4307 |
|
316 |
316S31 |
X5 Cr Ni Mo 17 12 2 |
1.4401 |
|
316L |
316S11 |
X2 Cr Ni Mo 17 13 2 |
1.4404 |
|
321 |
321S31 |
X6 Cr Ni 18 10 |
1.4541 |
|
316Ti |
320S31 |
X6 Cr Ni Mo Ti 17 12 2 |
1.4571 |
|
SMO |
254SMO |
X1 Cr Ni Mo Cu N 20 18 7 |
1.4547 |

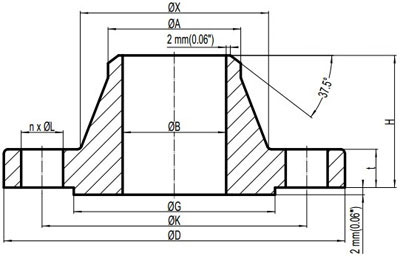

ANSI B16.5 Weld Neck Flanges A / B Dimensions & Weight Chart:
Welding neck flange bores according ASME/ANSI B16.5-1996 Pipe Flanges and Flanged Fittings

|
Welding Neck Flange Bores |
Nominal Pipe Size(inches)
|
|
Inside Diameter (inches) |
|---|
|
Light Wall 1) |
Schedule 20 |
Schedule 30 |
Standard Wall |
Schedule 40 |
Schedule 60 |
|
1/2 | 0.840 | 0.674 | - | - | 0.622 | 0.622 | - |
|
3/4 | 1.050 | 0.884 | - | - | 0.824 | 0.824 | - |
|
1 | 1.315 | 1.097 | - | - | 1.049 | 1.049 | - |
|
1 1/4 | 1.660 | 1.442 | - | - | 1.380 | 1.380 | - |
|
1 1/2 | 1.900 | 1.682 | - | - | 1.610 | 1.610 | - |
|
2 | 2.375 | 2.157 | - | - | 2.067 | 2.067 | - |
|
2 1/2 | 2.875 | 2.635 | - | - | 2.469 | 2.469 | - |
|
3 | 3.500 | 3.260 | - | - | 3.068 | 3.068 | - |
|
3 1/2 | 4.000 | 3.760 | - | - | 3.548 | 3.548 | - |
|
4 | 4.500 | 4.260 | - | - | 4.026 | 4.026 | - |
|
5 | 5.563 | 5.295 | - | - | 5.047 | 5.047 | - |
|
6 | 6.625 | 6.357 | - | - | 6.065 | 6.065 | - |
|
8 | 8.625 | 8.329 | 8.125 | 8.071 | 7.981 | 7.981 | 7.813 |
|
10 | 10.750 | 10.420 | 10.250 | 10.136 | 10.020 | 10.020 | 9.750 |
|
12 | 12.750 | 12.390 | 12.250 | 12.090 | 12.000 | 11.938 | 11.626 |
|
14 | 14.000 | 13.500 | 13.376 | 13.250 | 13.250 | 13.124 | 12.812 |
|
16 | 16.000 | 15.500 | 15.376 | 15.250 | 15.250 | 15.000 | 14.688 |
|
18 | 18.000 | 17.500 | 17.376 | 17.124 | 17.250 | 16.876 | 16.500 |
|
20 | 20.000 | 19.500 | 19.250 | 19.000 | 19.250 | 18.812 | 18.376 |
|
24 | 24.000 | 23.500 | 23.250 | 22.876 | 23.250 | 22.624 | 22.062 |
|
30 | 30.000 | 29.376 | 29.000 | 28.750 | 29.250 | - | - |
|
36 | 36.000 | 35.376 | 35.000 | 34.750 | 35.250 | 34.500 | - |
|
42 | 42.000 | - | - | - | 41.250 | - | - |
|
48 | 48.000 | - | - | - | 47.250 | - | - |
| Welding Neck Flange Bores |
Nominal Pipe Size(inches)
|
|
Inside Diameter (inches) |
|---|
|
Extra Strong |
Schedule 80 |
Schedule 100 |
Schedule 120 |
Schedule 140 |
Schedule 160 |
Double Extra Strong |
|
1/2 | 0.840 | 0.546 | 0.546 | - | - | - | 0.464 | 0.252 |
|
3/4 | 1.050 | 0.742 | 0.742 | - | - | - | 0.612 | 0.434 |
|
1 | 1.315 | 0.957 | 0.957 | - | - | - | 0.815 | 0.599 |
|
1 1/4 | 1.660 | 1.278 | 1.278 | - | - | - | 1.160 | 0.896 |
|
1 1/2 | 1.900 | 1.500 | 1.500 | - | - | - | 1.338 | 1.100 |
|
2 | 2.375 | 1.939 | 1.939 | - | - | - | 1.687 | 1.503 |
|
2 1/2 | 2.875 | 2.323 | 2.323 | - | - | - | 2.125 | 1.771 |
|
3 | 3.500 | 2.900 | 2.900 | - | - | - | 2.624 | 2.300 |
|
3 1/2 | 4.000 | 3.364 | 3.364 | - | - | - | - | 2.728 |
|
4 | 4.500 | 3.826 | 3.826 | - | 3.624 | - | 3.438 | 3.152 |
|
5 | 5.563 | 4.813 | 4.813 | - | 4.563 | - | 4.313 | 4.063 |
|
6 | 6.625 | 5.761 | 5.761 | - | 5.501 | - | 5.187 | 4.897 |
|
8 | 8.625 | 7.625 | 7.625 | 7.437 | 7.187 | 7.001 | 6.813 | 6.875 |
|
10 | 10.750 | 9.750 | 9.562 | 9.312 | 9.062 | 8.750 | 8.500 | 8.750 |
|
12 | 12.750 | 11.750 | 11.374 | 11.062 | 10.750 | 10.500 | 10.126 | 10.750 |
|
14 | 14.000 | 13.000 | 12.500 | 12.124 | 11.814 | 11.500 | 11.188 | - |
|
16 | 16.000 | 15.000 | 14.312 | 13.938 | 13.564 | 13.124 | 12.812 | - |
|
18 | 18.000 | 17.000 | 16.124 | 15.688 | 15.250 | 14.876 | 14.438 | - |
|
20 | 20.000 | 19.000 | 17.938 | 17.438 | 17.000 | 16.500 | 16.062 | - |
|
24 | 24.000 | 23.000 | 21.562 | 20.938 | 20.376 | 19.876 | 19.312 | - |
|
30 | 30.000 | 29.000 | - | - | - | - | - | - |
|
36 | 36.000 | 35.000 | - | - | - | - | - | - |
|
42 | 42.000 | 41.000 | - | - | - | - | - | - |
|
48 | 48.000 | 47.000 | - | - | - | - | - | - |
1) Stainless steel Schedule 10S diameters are equal to Light Wall in sizes up to 12″ and to Schedule 10 above.
Leading manufacturer of Weld Neck Flanges A / B
We also having stock of Weld Neck Flanges A / B & other Stainless Steel Flanges, Carbon Steel Flanges, Alloy Steel Flanges manufactured by :
| Erne Fittings, Austria | Metal far, Italy | Lame S.R.l., Italy |
| BENKAN Corporation, Japan | BKL- Thai Benkan, Thailand | TecnoForge, Italy |
| Ulma, Spain | Mega, Italy | Melesi, Italy |
| Interfit, France | Raccortubi S.P.A., Italy | |
we are the distributor of the of these Brands. we also have the sales representative who can provide the proper information of these Brands & about Grades, material and sizes of Weld Neck Flanges A / B.

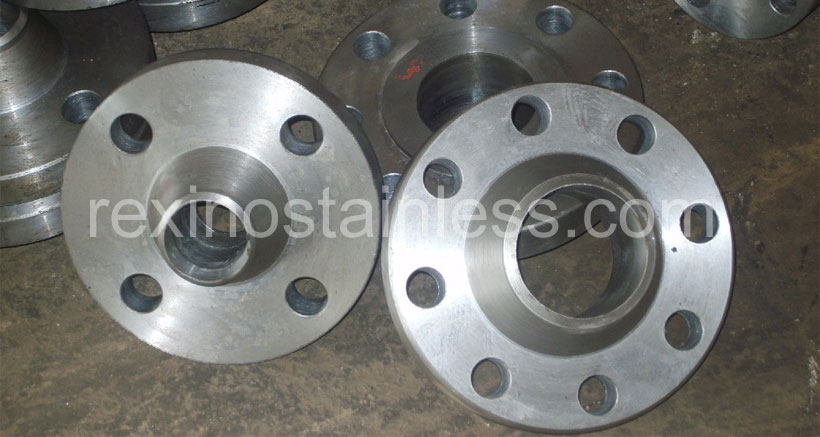

Our Live Stock of Weld Neck Flanges A / B
Weld Neck Flanges A / B Application
- Weld Neck Flanges A / B uses in Oil and Gas Pipeline
- Weld Neck Flanges A / B uses in Chemical Industry
- Weld Neck Flanges A / B uses in Plumbing
- Weld Neck Flanges A / B uses in Oil & Gas Industry
- Weld Neck Flanges A / B uses in Water Supply Systems
- Weld Neck Flanges A / B uses in Paper & Pulp Industry
|
- Weld Neck Flanges A / B uses in Power Plant
- Weld Neck Flanges A / B uses in Fabrication Industry
- Weld Neck Flanges A / B uses in General purpose applications
- Weld Neck Flanges A / B uses in Food Processing Industry
- Weld Neck Flanges A / B uses in Structural Pipe
- Weld Neck Flanges A / B uses in Heat Exchangers
|
We Stock All Different Types Of Weld Neck Flanges A / B at Best Price
