India's Most Experienced Manufacturers,Suppliers and Exporter of BS 4504 Flanges, BS 4504 FLANGE PN6-PN40, BS 4504 Weld neck Flanges, BS 4504 Slip on Flanges, BS 4504 Socket weld Flanges, BS 4504 Blind Flanges, BS 4504 Threaded Flange, BS 4504 Plate Flange, Stainless Steel BS 4504 Flanges, Carbon Steel BS 4504 Flange in India & UK

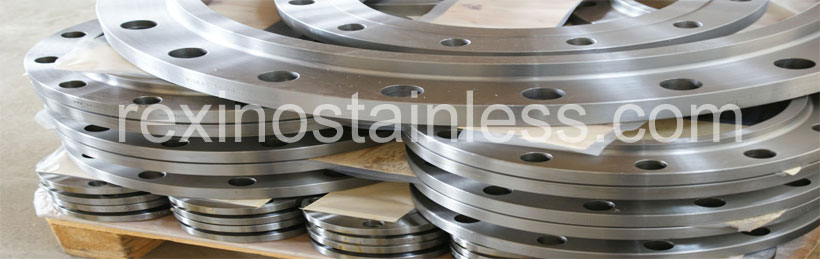

BS 4504 Flanges

• BS 4504 Flanges Dimensions
• BS 4504 Plate Flange
• BS 4504 Welding Neck Flange
• BS 4504 Threaded Flange
• BS 4504 Blind Flange
• Leading manufacturer of BS 4504 Flanges
• Our Live Stock of BS 4504 Flanges
• BS 4504 Flanges Application

Specifications :-

Types Of BS 4504 Flanges

•	BS 4504 Forged Flanges	•	BS 4504 High Hub Blinds Flanges
•	BS 4504 Blind Flanges	•	BS 4504 Spectacle Blinds Flanges
•	BS 4504 Reducing Flanges	•	BS 4504Loose Flanges
•	BS 4504 Orifice Flanges	•	BS 4504 RTJ Flanges
•	BS 4504 Socket Weld Flanges	•	BS 4504 Screwed Flanges
•	BS 4504 Slip On Flanges	•	BS 4504 Weld Neck Flanges
•	BS 4504 Flat Flanges	•	BS 4504 Flanges Facing Type & Finish
•	BS 4504 Lapped Joint Flanges	•	BS 4504 SORF Flanges
•	BS 4504 SWRF Flanges	•	BS 4504 Groove & Tongue Flanges
•	BS 4504 Square Flanges	•	BS 4504 Long Neck Weld Flanges
•	BS 4504 Threaded Flanges	•	BS 4504 Spades Ring Spacers Flanges
•	BS 4504 Weld Neck Flanges Series A or B	•	BS 4504 Ring Type Joint Flanges
•	BS 4504 WNRF Flanges	•	BS 4504 Weldo / Nipo Flanges
•	BS 4504 Expander Flanges

ANSI B16.5 BS 4504 Flange Dimensional Chart

BS 4504 : 1969 is still commonly used. This older standard allows for manufacture from bar, whereas the latest standard specifies that forging or plate are to be used, which can be significantly more expensive. There are minor differences in dimensions between the two versions. The following tables are based on the later version.

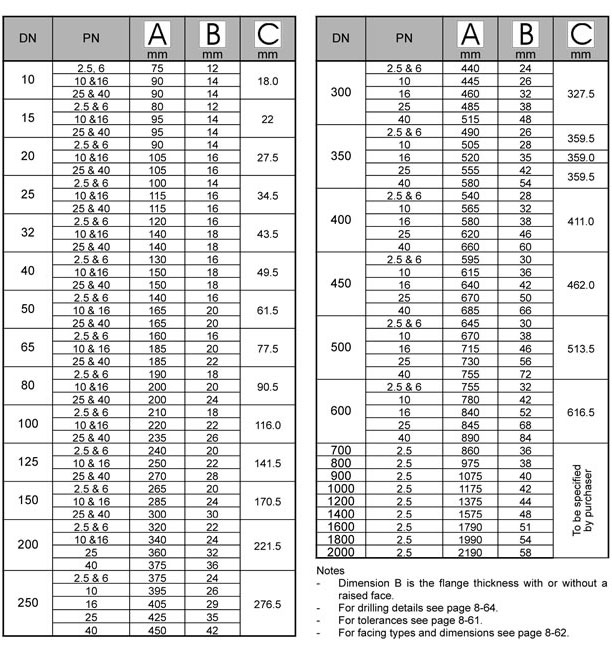

BS 4504 Plate Flange Dimensions

BS 4504 PLATE FLANGE PN6, PN10, PN16, PN25, PN40

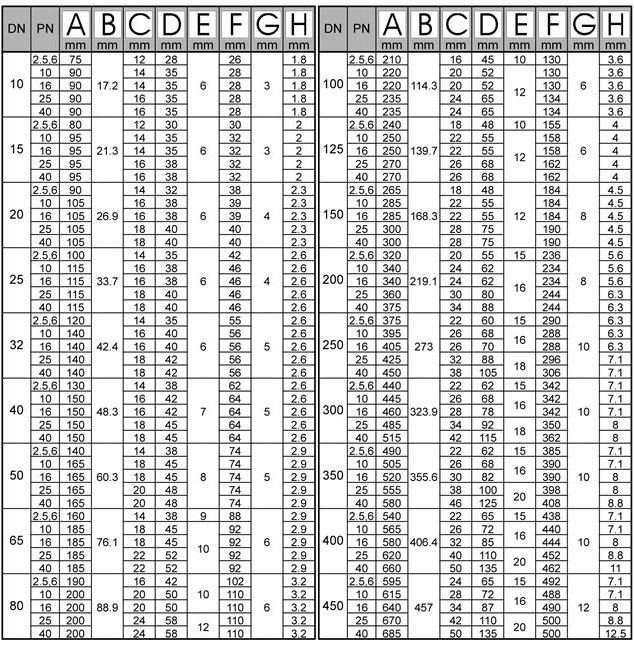

BS 4504 Welding Neck Flange Dimensions

BS 4504 WELD NECK FLANGE PN6, PN10, PN16, PN25, PN40

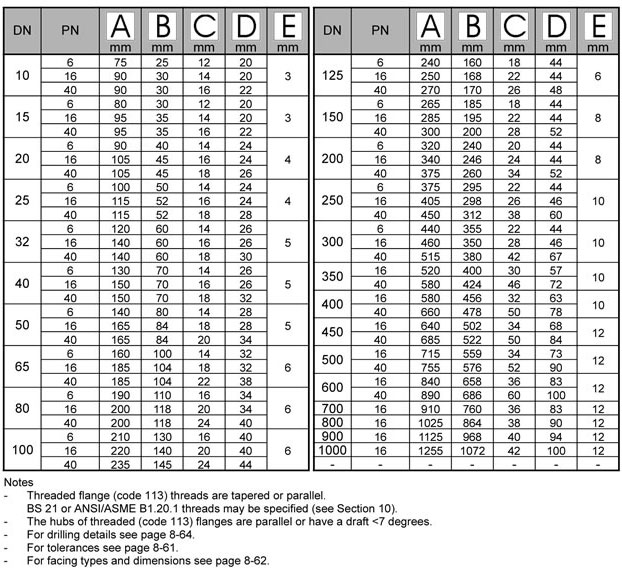

BS 4504 Threaded Flange Dimensions

BS 4504 THREADED FLANGE PN6, PN10, PN16, PN25, PN40

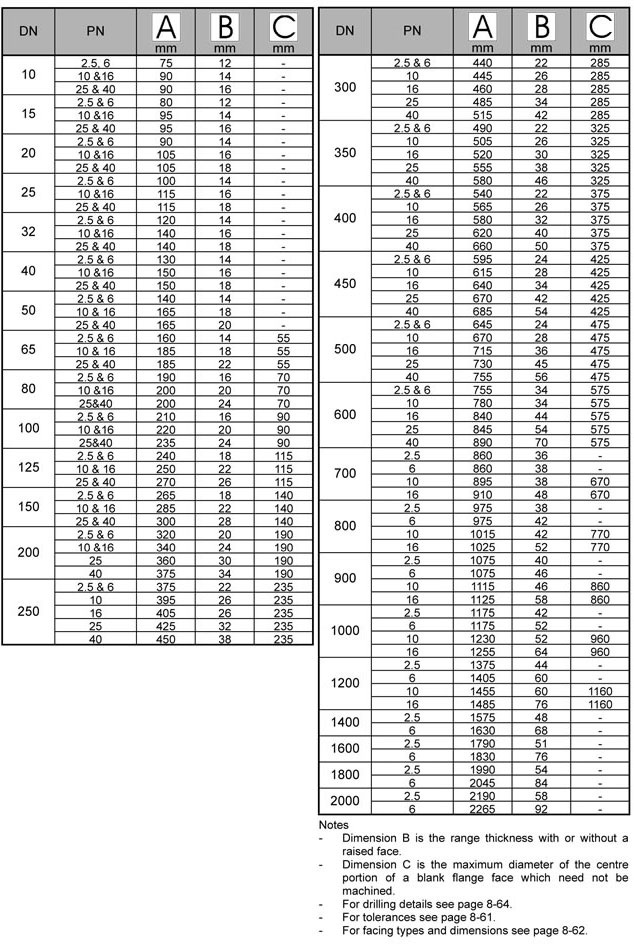

BS 4504 Blind Flange Dimensions

BS 4504 BLIND FLANGE PN6, PN10, PN16, PN25, PN40

BS Flange

BS 3293 Flanges
BS 3293 Weld Neck and Slip-On Flanges-class 300lbs	BS 3293 Weld Neck and Slip-On Flanges-class 150lbs
BS 3293 Weld Neck and Slip-On Flanges-class 600lbs	BS 3293 Weld Neck and Slip-On Flanges-class 400lbs
BS 4504 Plate Flange	BS 4504 Welding Neck Flange
BS 4504 Threaded Flange	BS 4504 Blind Flange
BS 10 Flanges
BS 4505 Flanges	BS 4504 PN 16 Dimensions
BS 4504 PN 25 Dimensions	BS 4504 PN 40 Dimensions

Leading manufacturer of BS 4504 Flanges

We also having stock of BS 4504 Flanges & other Stainless Steel Flanges, Carbon Steel Flanges, Alloy Steel Flanges manufactured by :

Erne Fittings, Austria	Metal far, Italy	Lame S.R.l., Italy
BENKAN Corporation, Japan	BKL- Thai Benkan, Thailand	TecnoForge, Italy
Ulma, Spain	Mega, Italy	Melesi, Italy
Interfit, France	Raccortubi S.P.A., Italy

we are the distributor of the of these Brands. we also have the sales representative who can provide the proper information of these Brands & about Grades, material and sizes of BS 4504 Flanges.

Our Live Stock of BS 4504 Flanges

Click Here for BS 4504 Weld Neck Flanges Live Stock

Click Here for BS 4504 Forged Flanges Live Stock

Click Here for BS 4504 Blind Flanges Live Stock

BS 4504 Flanges Application

BS 4504 Flanges uses in Oil and Gas Pipeline BS 4504 Flanges uses in Chemical Industry BS 4504 Flanges uses in Plumbing BS 4504 Flanges uses in Oil & Gas Industry BS 4504 Flanges uses in Water Supply Systems BS 4504 Flanges uses in Paper & Pulp Industry

BS 4504 Flanges uses in Power Plant BS 4504 Flanges uses in Fabrication Industry BS 4504 Flanges uses in General purpose applications BS 4504 Flanges uses in Food Processing Industry BS 4504 Flanges uses in Structural Pipe BS 4504 Flanges uses in Heat Exchangers
