bs10 flanges Manufacturers in India

 Home / bs10 flanges

India's Most Experienced Manufacturers,Suppliers and Exporter of BS 10 Flanges, BS 10 Table D Flanges , BS 10 Weld neck Flanges, BS 10 Slip on Flanges, BS 10 Socket weld Flanges, BS 10 Blind Flanges, BS 10 Threaded Flange, BS 10 Plate Flange, Stainless Steel BS 10 Flanges, Carbon Steel BS 10 Flange in India & UK

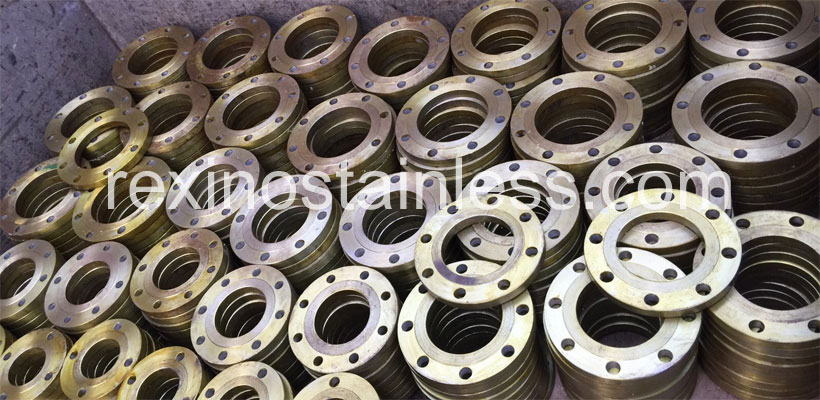

Bs 10 Flanges


Bs 10 Flanges

Specifications :-

  • BS flange is a flange system from England, which have flange type including Welding neck Flanges, Plate Slip-on Flanges, Screwed Boss Flanges, Slip on Boss Flanges, slip on flange, blind flange, welded neck flange, threaded flange, lapped joint flange (loose flange), socket welded flange, Orifice Flanges, long weld neck flange and special flangeetc., pressure grade from PN 2.4 to PN 40, Size from 1/2" NB TO 48"NB.
  • Type: Welding neck Flanges, Plate Slip-on Flanges, Screwed Boss Flanges, Slip on Boss Flanges, Blind Flanges
  • Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
  • Standard: ANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
  • Size: 1/2-78 inch (DN15-DN2000) / DN15 – DN2000 (1/2″ – 80″), Forged Flange.
  • Pressure: ANSI class 150,300,600,1500,2500, DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160
  • Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
  • Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
  • E-catalogue: Available , please visit catalogue of flange
  • Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc

Types Of BS 10 Flanges

•BS 10 Forged Flanges•BS 10 High Hub Blinds Flanges
•BS 10 Blind Flanges•BS 10 Spectacle Blinds Flanges
•BS 10 Reducing Flanges•BS 10 Loose Flanges
•BS 10 Orifice Flanges•BS 10 RTJ Flanges
•BS 10 Socket Weld Flanges•BS 10 Screwed Flanges
•BS 10 Slip On Flanges•BS 10 Weld Neck Flanges
•BS 10 Flat Flanges•BS 10 Flanges Facing Type & Finish
•BS 10 Lapped Joint Flanges•BS 10 SORF Flanges
•BS 10 SWRF Flanges•BS 10 Groove & Tongue Flanges
•BS 10 Square Flanges•BS 10 Long Neck Weld Flanges
•BS 10 Threaded Flanges•BS 10 Spades Ring Spacers Flanges
•BS 10 Weld Neck Flanges Series A or B•BS 10 Ring Type Joint Flanges
•BS 10 WNRF Flanges•BS 10 Weldo / Nipo Flanges
•BS 10 Expander Flanges

ANSI B16.5 BS 10 Flange Dimensional Chart

BS 10 : 1969 is still commonly used. This older standard allows for manufacture from bar, whereas the latest standard specifies that forging or plate are to be used, which can be significantly more expensive. There are minor differences in dimensions between the two versions. The following tables are based on the later version.


BS 10 Table D Flange Dimensions

Dimensions & Approximate Masses of BS 10 Table D Flange

BRITISH BS 10 TABLE D FLANGE SPECIFICATION

N.B. SIZEDKLACN1N2BH1H2R1R2HOLES
INmm
½”1595.366.814.521.34.827.033.322.49.522.26.41.64
¾”20101.673.214.526.74.833.338.127.711.122.26.41.64
1″25114.382.614.533.54.842.947.634.611.122.26.41.64
1 ¼”32120.787.414.542.26.449.255.643.211.125.46.41.64
1 ½”40133.498.614.548.36.458.761.949.512.728.66.41.64
2″50152.4114.317.560.57.969.974.662.012.728.66.41.64
2 ½”65165.1127.017.573.27.982.690.574.715.931.86.41.64
3″80184.2146.117.588.99.7101.6106.490.715.934.96.41.64
3 ½”88203.2165.117.5101.69.7114.3119.1103.417.534.96.41.64
4″100215.9177.817.5114.39.7130.2133.4116.119.141.39.53.24
5″125254.0209.617.5141.212.7152.4160.3143.819.144.59.53.28
6″150279.4235.017.5168.412.7184.2185.7171.719.147.69.53.28
8″200336.6292.117.5219.212.7241.3241.3221.522.250.89.53.28
10″250406.4355.622.2273.116.0292.1298.5276.427.063.59.53.28
12″300457.2406.422.2323.919.1342.9349.3325.928.669.99.54.812
14″350527.1469.925.4355.622.2406.4-359.2-73.09.54.812
16″400577.9520.725.4406.422.2--410.5----12
18″450641.4584.225.4457.225.4--461.8----12
20″500704.9641.425.4508.028.6--513.1----16
24″600825.5755.728.7609.631.8--616.0----16

BS 10 Table E Flange Dimensions

Dimensions & Approximate Masses of BS 10 Table E Flange

BRITISH BS 10 TABLE E FLANGE SPECIFICATION

N.B. SIZEDKLACN1N2BH1H2R1R2HOLES
INmm
½”1595.366.814.521.36.427.033.322.49.522.26.41.64
¾”20101.673.214.526.76.433.338.127.711.122.26.41.64
1″25114.382.614.533.57.242.947.634.611.122.26.41.64
1 ¼”32120.787.414.542.27.949.255.643.211.125.46.41.64
1 ½”40133.498.614.548.38.758.761.949.512.728.66.41.64
2″50152.4114.317.560.59.569.974.662.012.728.66.41.64
2 ½”65165.1127.017.573.210.382.690.574.715.931.86.41.64
3″80184.2146.117.588.911.1101.6106.490.715.934.96.41.64
3 ½”88203.2165.117.5101.611.9114.3119.1103.417.534.96.41.64
4″100215.9177.817.5114.312.7130.2133.4116.119.141.39.53.24
5″125254.0209.617.5141.214.3152.4160.3143.819.144.59.53.28
6″150279.4235.017.5168.417.5184.2185.7171.719.147.69.53.28
8″200336.6292.117.5219.219.1241.3241.3221.522.250.89.53.28
10″250406.4355.622.2273.122.2292.1298.5276.427.063.59.53.28
12″300457.2406.422.2323.925.4342.9349.3325.928.669.99.54.812
14″350527.1469.925.4355.628.6406.4-359.2-73.09.54.812
16″400577.9520.725.4406.431.8431.8-410.5----12
18″450641.4584.225.4457.234.9--461.8----12
20″500704.9641.425.4508.038.1--513.1----16
24″600825.5755.728.7609.647.6--616.0----16

BS 10 Table F Flange Dimensions

Dimensions & Approximate Masses of BS 10 Table F Flange

BRITISH BS 10 TABLE F FLANGE SPECIFICATION

N.B. SIZEDKLACN1N2BH1H2R1R2HOLES
INmm
½”1595.366.814.521.36.427.033.322.49.522.26.41.64
¾”20101.673.214.526.76.433.338.127.711.122.26.41.64
1″25114.382.614.533.57.242.947.634.611.122.26.41.64
1 ¼”32120.787.414.542.27.949.255.643.211.125.46.41.64
1 ½”40133.498.614.548.38.758.761.949.512.728.66.41.64
2″50152.4114.317.560.59.569.974.662.012.728.66.41.64
2 ½”65165.1127.017.573.210.382.690.574.715.931.86.41.64
3″80184.2146.117.588.911.1101.6106.490.715.934.96.41.64
3 ½”88203.2165.117.5101.611.9114.3119.1103.417.534.96.41.64
4″100215.9177.817.5114.312.7130.2133.4116.119.141.39.53.24
5″125254.0209.617.5141.214.3152.4160.3143.819.144.59.53.28
6″150279.4235.017.5168.417.5184.2185.7171.719.147.69.53.28
8″200336.6292.117.5219.219.1241.3241.3221.522.250.89.53.28
10″250406.4355.622.2273.122.2292.1298.5276.427.063.59.53.28
12″300457.2406.422.2323.925.4342.9349.3325.928.669.99.54.812
14″350527.1469.925.4355.628.6406.4-359.2-73.09.54.812
16″400577.9520.725.4406.431.8431.8-410.5----12
18″450641.4584.225.4457.234.9--461.8----12
20″500704.9641.425.4508.038.1--513.1----16
24″600825.5755.728.7609.647.6--616.0----16

BS 3293 Flanges
BS 3293 Weld Neck and Slip-On Flanges-class 300lbsBS 3293 Weld Neck and Slip-On Flanges-class 150lbs
BS 3293 Weld Neck and Slip-On Flanges-class 600lbsBS 3293 Weld Neck and Slip-On Flanges-class 400lbs
BS 4504 Plate FlangeBS 4504 Welding Neck Flange
BS 4504 Threaded FlangeBS 4504 Blind Flange
BS 10 Flanges
BS 4505 Flanges BS 4504 PN 16 Dimensions
BS 4504 PN 25 DimensionsBS 4504 PN 40 Dimensions

Leading manufacturer of BS 10 Flanges

We also having stock of BS BS 10 Flanges & other Stainless Steel Flanges, Carbon Steel Flanges, Alloy Steel Flanges manufactured by :

Erne Fittings, AustriaMetal far, ItalyLame S.R.l., Italy
BENKAN Corporation, JapanBKL- Thai Benkan, ThailandTecnoForge, Italy
Ulma, SpainMega, ItalyMelesi, Italy
Interfit, FranceRaccortubi S.P.A., Italy

we are the distributor of the of these Brands. we also have the sales representative who can provide the proper information of these Brands & about Grades, material and sizes of BS 10 Flanges.


Our Live Stock of BS 10 Flanges

Click Here for BS 10 Weld Neck Flanges Live Stock

Click Here for BS 10 Forged Flanges Live Stock

Click Here for BS 10 Blind Flanges Live Stock

BS 10 Flanges Application

  • BS 10 Flanges uses in Oil and Gas Pipeline
  • BS 10 Flanges uses in Chemical Industry
  • BS 10 Flanges uses in Plumbing
  • BS 10 Flanges uses in Oil & Gas Industry
  • BS 10 Flanges uses in Water Supply Systems
  • BS 10 Flanges uses in Paper & Pulp Industry
  • BS 10 Flanges uses in Power Plant
  • BS 10 Flanges uses in Fabrication Industry
  • BS 10 Flanges uses in General purpose applications
  • BS 10 Flanges uses in Food Processing Industry
  • BS 10 Flanges uses in Structural Pipe
  • BS 10 Flanges uses in Heat Exchangers
